RNF18JBD220R

Overview

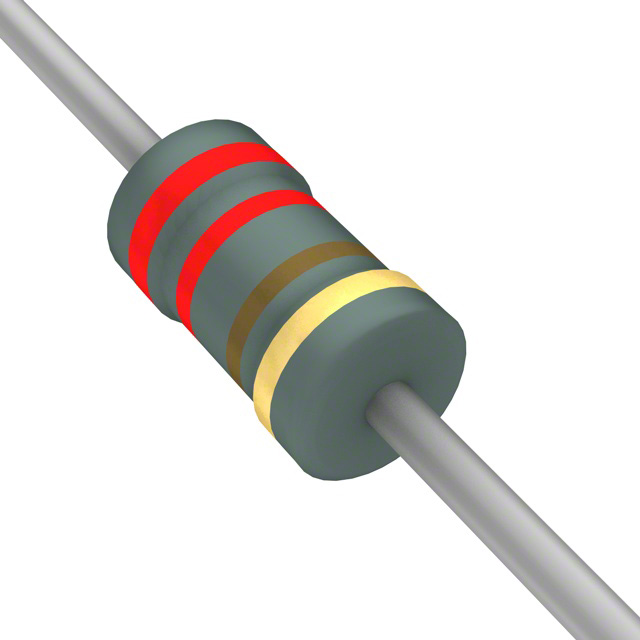

Stackpole Electronics Inc RNF18JBD220R is a through-hole metal film resistor with a nominal resistance of 220 Ohms and a tolerance of ±5%. It features a power rating of 1/8W (0.125W) and an axial package. The component operates within a temperature range of -55°C to +155°C, has a temperature coefficient of ±100ppm/°C, and carries a voltage rating of 200V.

Feature Summary

• Constructed using metal film technology for stable electrical performance
• Features flame-retardant coating for enhanced safety compliance
• Designed for general-purpose electronic circuit applications

Applications

• General purpose electronic circuits
• PCB mounting applications
• Precision resistor networks

Procurement Notes

Verify the specific suffix 'BD' against official Stackpole documentation to confirm bulk packaging status and exact physical dimensions. Ensure the selected variant matches the required 200V rating and ±100ppm/°C stability for your design constraints before finalizing procurement.

Selection Notes

Select this component when a compact axial metal film resistor is required for general-purpose use. The 1/8W power rating suits low-power signal conditioning or biasing circuits. Verify that the 200V maximum working voltage meets the circuit requirements.

Part Context

The RNF18JBD220R belongs to the RNF/RNMF series of precision metal film resistors manufactured by Stackpole Electronics Inc. This series is characterized by its small axial form factor and flame-retardant construction, suitable for space-constrained printed circuit board designs requiring reliable passive components.

Replacement Considerations

Direct substitutes include RNMF14FAD220R and RNF18FTD220R from Stackpole Electronics Inc. These alternatives share similar axial metal film characteristics but may differ in tolerance or specific packaging configurations.
