RNF18JBD2K20

Overview

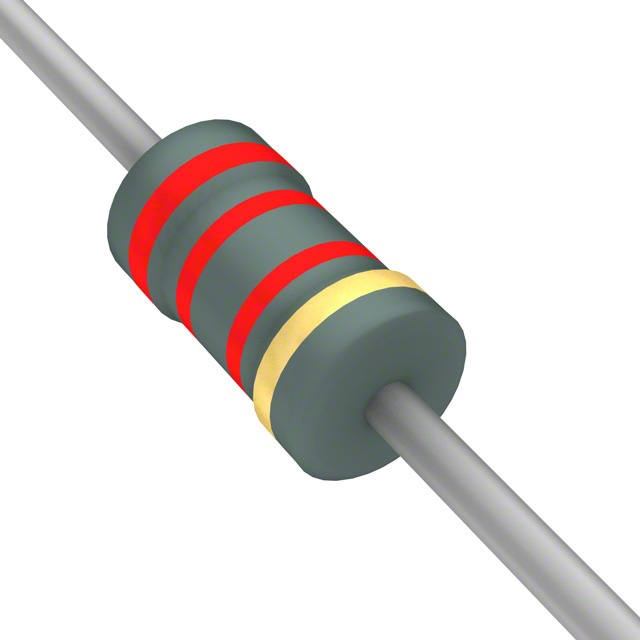

The RNF18JBD2K20 is a through-hole axial metal film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 2.2 kOhms with a tolerance of ±5% and a power rating of 1/8W (0.125W). The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±100ppm/°C. Physical dimensions are 1.80mm in diameter and 3.30mm in length, with a voltage rating of 200V.

Feature Summary

• Constructed using metal film technology for stable electrical performance
• Features flame-retardant coating for enhanced safety compliance
• Designed for general-purpose PCB mounting applications

Applications

• General purpose electronic circuits
• PCB mounting applications
• Signal conditioning networks

Procurement Notes

Verify the specific ordering suffix 'JBD' against official Stackpole documentation to confirm bulk packaging configuration. Ensure the selected variant matches the required RoHS3 compliance status and REACH regulatory standards for the target market. Confirm lead times directly with authorized distributors as availability may vary.

Selection Notes

Select this component when a 2.2kOhm resistance with ±5% tolerance is required in a compact 1/8W form factor. The ±100ppm/°C temperature coefficient suits applications requiring moderate thermal stability. Verify that the 200V voltage rating meets circuit requirements and that the axial package fits the designated PCB layout constraints.

Part Context

This part belongs to the RNF series of precision metal film resistors from Stackpole Electronics. It shares the standard axial footprint and dimensional characteristics common to the 1/8W power rating category within the manufacturer's through-hole resistor portfolio.

Replacement Considerations

• RNF18FTD2K20
• RNMF14FTD2K20

FAQ

What is the temperature coefficient of the RNF18JBD2K20?

The temperature coefficient is ±100ppm/°C.

Is the RNF18JBD2K20 RoHS compliant?

Yes, the component complies with RoHS3 specifications.
