RNF18JBD33K0

Overview

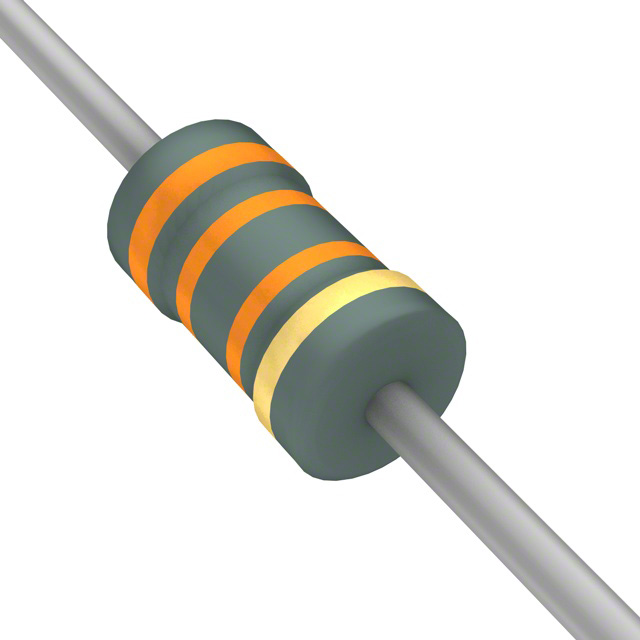

The RNF18JBD33K0 is a through-hole metal film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 33 kOhms with a tolerance of ±5%. The component has a power rating of 1/8 W (125 mW) and operates within a temperature range of -55°C to +155°C. It utilizes an axial package with dimensions of 1.8 mm diameter by 3.3 mm length. The voltage rating is 200 V, and the temperature coefficient is 100 PPM/°C.

Feature Summary

• Constructed using metal film technology for stable electrical performance.
• Features a flame-retardant coating for enhanced safety compliance.
• Designed for general-purpose applications in electronic circuits.

Applications

• General purpose electronic circuitry
• PCB mount installations
• Precision resistor applications

Procurement Notes

Verify the specific suffix 'BD' against official datasheets to confirm bulk packaging status, as other variants may use tape and reel. Confirm RoHS3 compliance and REACH status requirements for your region. Ensure the axial lead form factor matches your PCB layout constraints before finalizing procurement.

Selection Notes

Select this component when a 33 kOhm resistance with 5% tolerance is required in a compact 1/8 W axial form factor. The metal film construction offers better stability than carbon composition. Verify that the 200 V maximum working voltage meets the circuit requirements. Consider the 100 PPM/°C temperature coefficient for thermal stability needs.

Part Context

This part belongs to the RNF/RNMF series of precision through-hole resistors from Stackpole Electronics. The series is characterized by metal film construction and axial packaging. It is designed for general-purpose use where reliable performance and standard sizing are prioritized over high-power handling or specialized surface-mount integration.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 33 kOhm value, 1/8 W power rating, 5% tolerance, and axial package dimensions with other manufacturers' metal film resistor lines.

FAQ

What is the maximum working voltage for the RNF18JBD33K0?

The maximum working voltage for this resistor is 200 V.

Is the RNF18JBD33K0 RoHS compliant?

Yes, the component is listed as RoHS compliant.
