RNF18JBD33R0

Overview

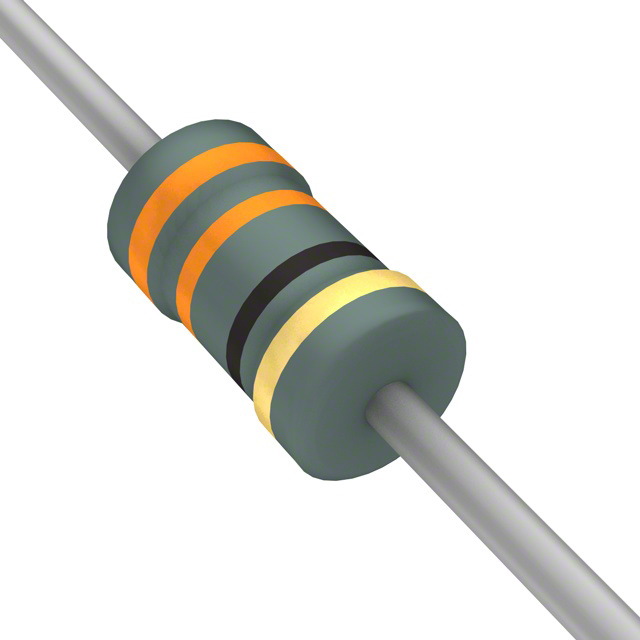

The RNF18JBD33R0 is a fixed through-hole metal film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 33 Ohms with a tolerance of ±5% and a power rating of 0.125W (1/8W). The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient of 100 ppm/°C. Its axial package measures 1.8 mm in diameter and 3.3 mm in length, rated for a maximum working voltage of 200V.

Feature Summary

• Constructed using precision metal film technology for stable electrical performance
• Features flame-retardant coating for enhanced safety compliance
• Designed for general-purpose applications with standard axial leaded mounting

Applications

• General purpose electronic circuits
• PCB mount assemblies requiring axial components
• Signal conditioning networks

Procurement Notes

Verify the specific suffix JBD against manufacturer documentation to confirm the bulk packaging configuration, as tape-and-reel options may exist for the same base part number. Confirm RoHS3 compliance status directly with the supplier prior to final procurement to ensure alignment with current environmental regulations.

Selection Notes

Select this component when a 33 Ohm resistance with 5% tolerance is required in a compact 1/8W form factor. Ensure the circuit environment remains within the specified -55°C to +155°C operating range. Verify that the 200V maximum working voltage exceeds the peak voltage present in the application circuit.

Part Context

This resistor belongs to the RNF/RNMF series of general-purpose metal film resistors from Stackpole Electronics. The series is characterized by its precision construction and flame-retardant coatings, suitable for various commercial and industrial electronics where reliable axial mounting is preferred over surface-mount alternatives.

Replacement Considerations

Compatible substitutes include other 33 Ohm, 1/8W, ±5% tolerance axial metal film resistors with equivalent thermal ratings. Verify physical dimensions and terminal compatibility before substitution.
