RNF18JBD470K

Overview

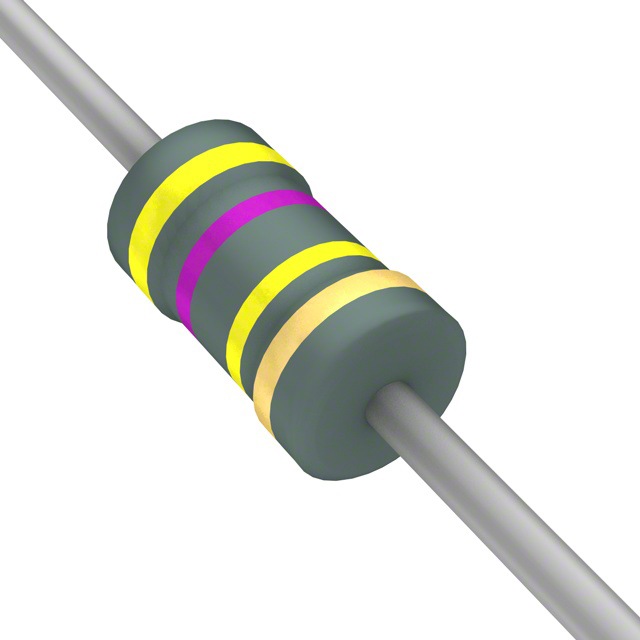

The RNF18JBD470K is a metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 47 kOhms with a tolerance of ±5% and a power rating of 0.125W (1/8W). The component operates within a temperature range of -55°C to +155°C, has a temperature coefficient of ±100ppm/°C, and includes a flame-retardant coating for safety.

Feature Summary

• Constructed using metal film technology for stable resistive performance
• Features a flame-retardant coating designed for enhanced safety
• Supports general-purpose electronic circuit applications

Applications

• General purpose electronic circuits
• Industrial equipment signal conditioning
• Consumer electronics control boards

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability and lead times. Ensure compliance with RoHS3 standards and check for any recent product change notices that may affect specifications or packaging before finalizing procurement orders.

Selection Notes

Select this component for applications requiring standard precision in low-power environments. The 1/8W rating and axial package suit space-constrained PCB layouts where through-hole mounting is preferred over surface mount alternatives.

Part Context

This resistor belongs to the RNF series, which utilizes metal film composition. The series is characterized by its flame-retardant properties and suitability for general-purpose use across various industrial and consumer electronics sectors.

Replacement Considerations

Consult official distributor databases for verified substitute part numbers from Stackpole or other manufacturers that match the 47kΩ, 1/8W, ±5% specification.
