RNF18JBD47R0

Overview

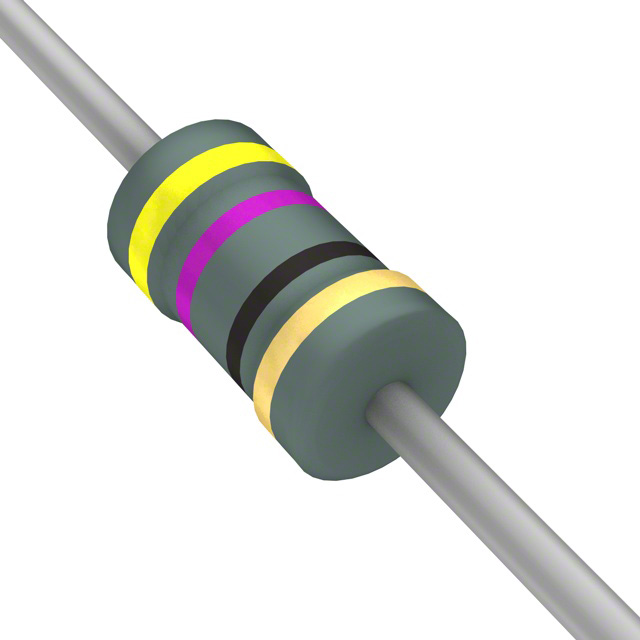

The RNF18JBD47R0 is a precision metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 47 Ohms with a tolerance of ±5% and a power rating of 1/8 W (125 mW). The component operates within a temperature range of -55°C to +155°C, supported by a temperature coefficient of 100 ppm/°C. Rated for 200 V, it measures 1.8 mm in diameter and 3.3 mm in length. This part belongs to the RNF series and complies with RoHS3 standards.

Feature Summary

• Constructed using metal film technology for stable electrical performance.
• Features a flame-retardant coating designed for enhanced safety.
• Designed for general-purpose applications requiring reliable PCB mounting.

Applications

• General purpose electronic circuits
• Precision resistor networks
• PCB mounting applications

Procurement Notes

Verify the specific suffix 'JBD' against official Stackpole documentation to confirm the exact tolerance and packaging configuration. Ensure compatibility with standard axial lead spacing and verify that the 1/8 W power rating meets thermal requirements for the intended circuit design before finalizing procurement.

Selection Notes

Select this component when a 47 Ohm resistance with ±5% tolerance is required for general-purpose applications. Consider the 100 ppm/°C temperature coefficient for stability needs and ensure the 1/8 W power rating is sufficient for the operating environment. Verify compliance with RoHS3 regulations if applicable to the project specifications.

Part Context

This resistor is part of the RNF/RNMF series from Stackpole Electronics Inc, which specializes in precision metal film components. The series is characterized by its small axial package size and flame-retardant safety coatings, making it suitable for dense PCB layouts where space efficiency and safety are prioritized alongside standard electrical performance.

Replacement Considerations

RNMF14JBD47R0
