RNF18JBD75R0

Overview

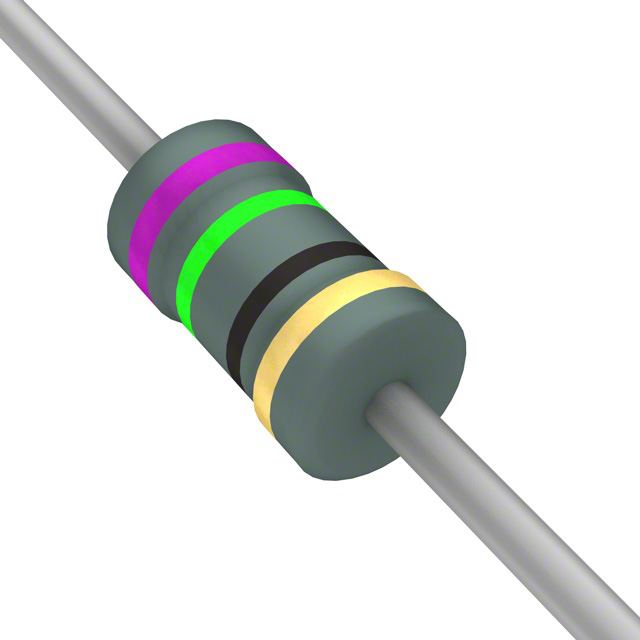

The RNF18JBD75R0 is a metal film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 75 Ohms with a tolerance of ±0.1%. The component has a power rating of 1/8 W (125 mW) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of ±25 ppm/°C and carries AEC-Q200 automotive qualification.

Feature Summary

• Precision metal film construction for stable electrical performance
• Automotive grade certification ensuring reliability in vehicle applications
• Flameproof coating for enhanced safety during operation

Applications

• Automotive electronic circuits requiring high precision
• General purpose analog signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix 'BD' confirms the ±0.1% tolerance variant, as standard J-series parts typically denote ±5%. Confirm current manufacturing status and RoHS compliance directly with the manufacturer or authorized distributors, as availability may vary.

Selection Notes

Select this component when precise resistance values are critical in space-constrained through-hole designs. Ensure the operating environment stays within the specified temperature limits and that the 1/8 W power rating suffices for the circuit's dissipation requirements without derating.

Part Context

This part belongs to the RNF series of precision metal film resistors from Stackpole Electronics. The series is designed for applications demanding tight tolerances and low noise, distinguishing it from general-purpose carbon composition or thicker film alternatives.

Replacement Considerations

Direct substitutes must match the 75 Ohm value, ±0.1% tolerance, 1/8 W power rating, and axial package. Verify that any replacement also holds AEC-Q200 qualification if used in automotive contexts.
