RNF18JBD82R0

Overview

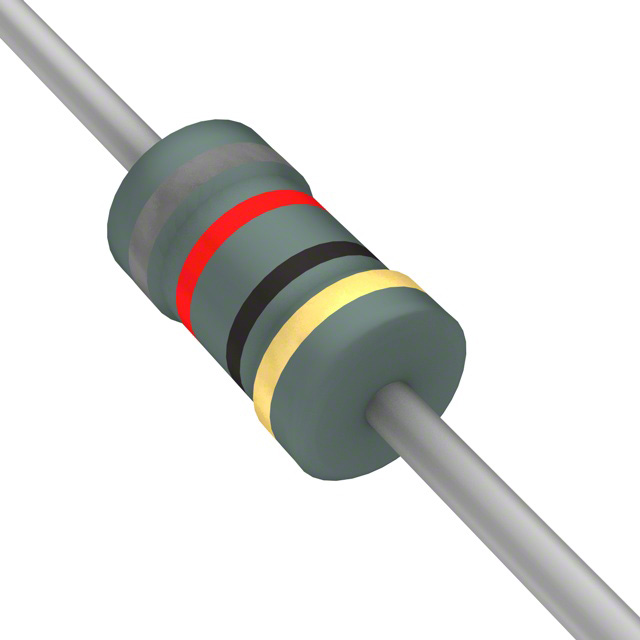

The RNF18JBD82R0 is a precision metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 82 Ohms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of ±100ppm/°C and carries a voltage rating of 200V. The physical dimensions are 1.80mm in diameter and 3.30mm in length, packaged in bulk.

Feature Summary

• Constructed using metal film technology for stable resistive performance.
• Features a flame-retardant coating for enhanced safety compliance.
• Designed for general-purpose applications requiring precision resistance.

Applications

• General purpose electronic circuits
• Precision resistor networks
• PCB mounting applications

Procurement Notes

Verify the specific ordering suffix 'JBD' against the manufacturer's official datasheet to confirm that it corresponds to the bulk packaging format and standard tolerance specifications. Ensure compatibility with the required voltage rating and thermal operating conditions before finalizing procurement orders.

Selection Notes

Select this component when a 1/8W axial metal film resistor with ±5% tolerance is required. Consider the ±100ppm/°C temperature coefficient and 200V maximum working voltage limits. Verify that the bulk packaging option aligns with assembly line requirements compared to tape and reel alternatives.

Part Context

This part belongs to the RNF series of precision metal film resistors from Stackpole Electronics. The series is characterized by its small axial footprint and flame-retardant safety coating. It serves as a standard solution for general-purpose discrete resistor needs in consumer and industrial electronics.

Replacement Considerations

Direct substitutes include other Stackpole RNF series parts with matching 82 Ohm values and 1/8W ratings, such as RNF18FTD82R0 or RNF18DTD82R0, provided the tolerance and packaging differences are acceptable for the design.
