RNMF14FBD9K09

Overview

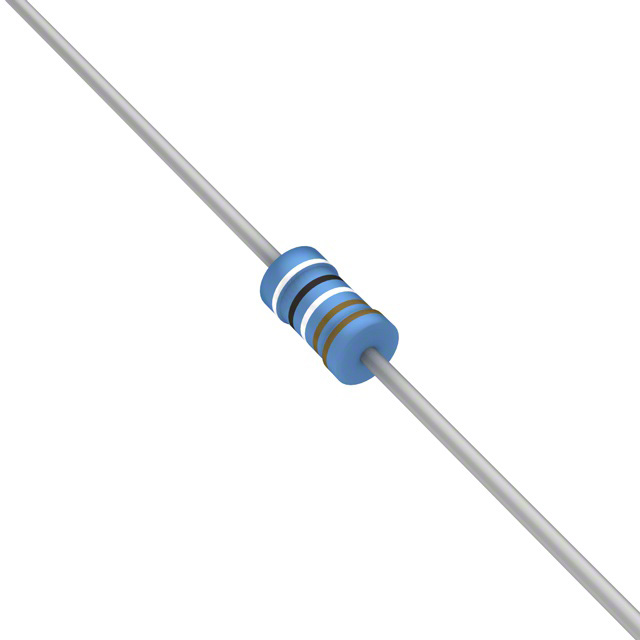

The RNMF14FBD9K09 is a through-hole metal film resistor manufactured by Stackpole Electronics Inc. It features an axial leaded package with flame retardant coating and safety construction. The component has a resistance value of 9.09 kOhms, a power rating of 0.25W (1/4W), and a tolerance of ±1%. It operates within a temperature range of -55°C to +155°C and exhibits a temperature coefficient of ±100ppm/°C.

Feature Summary

• Constructed with metal film technology for stable performance
• Features flame retardant coating for enhanced safety
• Designed with axial leads for through-hole mounting

Applications

• General purpose electronic circuits
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix 'BD' against official datasheets to confirm the ±100ppm/°C temperature coefficient, as other variants in the RNF/RNMF series may differ. Ensure the axial package dimensions match the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 9.09 kOhm resistance value is required with ±1% precision. The ±100ppm/°C temperature coefficient distinguishes it from lower drift alternatives. Confirm that the 1/4W power rating and axial form factor are compatible with the design constraints.

Part Context

This part belongs to the RNF/RNMF series of metal film resistors produced by Stackpole Electronics Inc. These components are characterized by their axial leaded configuration and flame retardant safety coatings, designed for reliable performance in standard through-hole applications across various industrial and commercial sectors.

Replacement Considerations

RNMF14FAD9K09 is listed as a parameter equivalent substitute.
