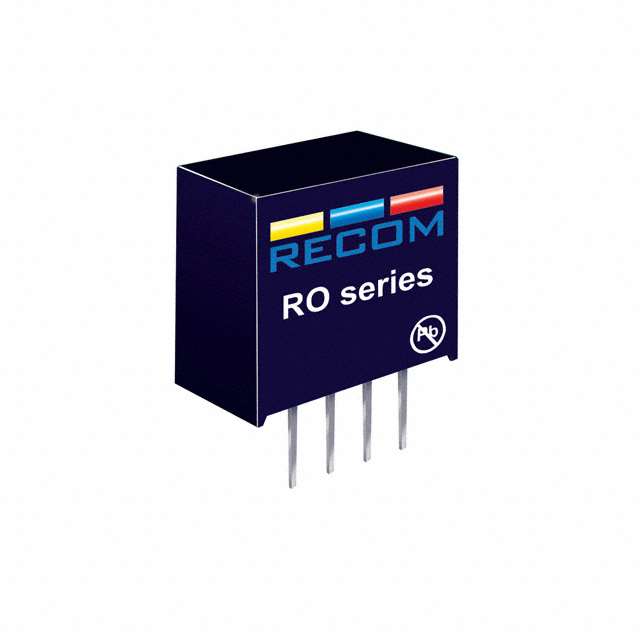

ROL-0505S

ROL-0505S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 5V 500MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ROL-0505S

• Description：DC DC CONVERTER 5V 500MW
• Series：ECONOLINE ROL (0.5W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA
• Power (Watts)：500 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
• Control Features：-

DC DC Converters datasheet and documents for ROL-0505S
