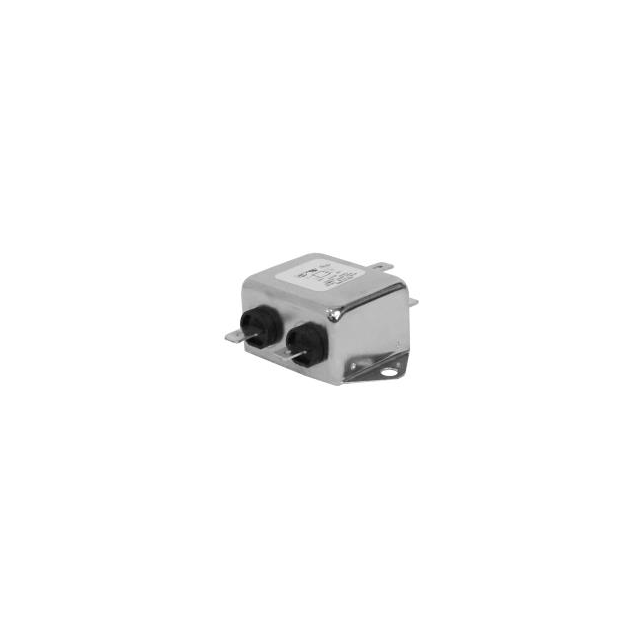

RP100-6-.47-QD

$13.93

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP100
Mfr：Astrodyne TDI
Package：Box

SKU:9bce4f55113d Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP100
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CE, cURus, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-

Download product information

RP100-6-.47-QD

Overview

The Astrodyne TDI RP100-6-.47-QD is a compact, single-phase power line filter designed for chassis mounting. It features quick connect terminals and operates at 250 VAC with a 6 A current rating. The unit utilizes a 0.47 nF capacitance value and supports 50/60 Hz frequencies. Certified under UL, CSA, and EN standards, it provides EMI suppression in a bulk package format.

Feature Summary

Compact single-stage design for space-constrained applications
Quick connect terminal configuration for simplified wiring
Chassis mount style for secure installation

Applications

Industrial equipment EMI filtering
Medical device power supply protection
Commercial electronics noise suppression

Procurement Notes

Verify the specific capacitance value against official datasheets, as similar model numbers may vary. Confirm terminal type compatibility with mating connectors. Ensure chassis mounting holes align with mechanical drawings. Check certification requirements for the target market before procurement.

Selection Notes

Select this component when a low-capacitance, high-current single-stage filter is required. Compare leakage current specifications against safety limits. Evaluate physical dimensions against available panel space. Consider the quick connect interface for assembly speed versus soldered alternatives.

Part Context

This part belongs to the RP100 series of power line filters from Astrodyne TDI. The series offers various current ratings and capacitance options within a standardized compact form factor. It is engineered for general-purpose EMI suppression in AC power lines.

Replacement Considerations

Direct substitutes include other RP100 series variants with matching current and voltage ratings. Verify that alternative models maintain the same quick connect terminal style and chassis mounting footprint to ensure mechanical compatibility.
