Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：RP105
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, cURus, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

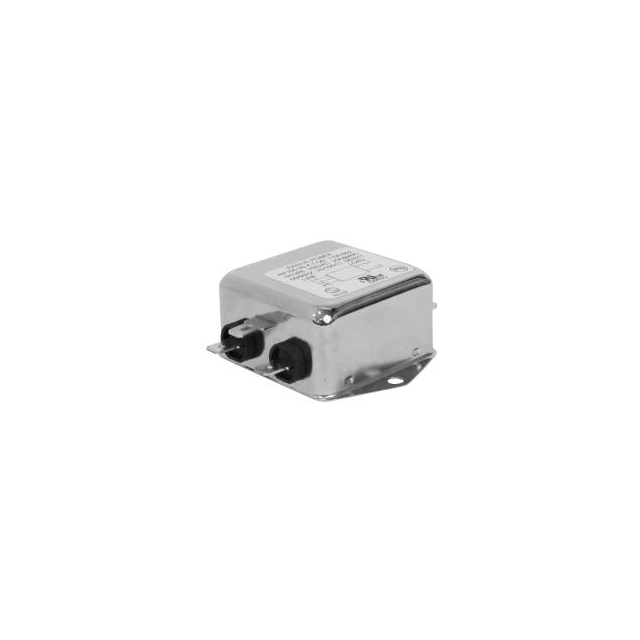

The RP105-3-0-QD is a compact single-phase, single-stage power line filter from the Astrodyne TDI RP105 series. It features a 250 VAC voltage rating and a 3 A current capacity. The unit utilizes quick connect terminals for chassis mounting and operates at 50 Hz or 60 Hz frequencies. Key electrical specifications include a capacitance of 0 nF (Y-capacitor configuration) and a leakage current range of 0 to 150 µA. The device complies with UL, CSA, and EN standards.
Feature Summary
- Compact single-stage design for efficient EMI/RFI suppression
- Quick connect terminal interface for simplified installation
- Chassis mount construction for secure integration
Applications
- Industrial equipment power conditioning
- Medical device power supply filtering
- Commercial electronics EMC compliance
Procurement Notes
Verify the specific datasheet version for the RP105-3-0-QD to confirm exact leakage current limits and capacitance values, as these parameters can vary by manufacturing batch. Ensure that the quick connect terminal dimensions match the mating connector specifications in your system design. Confirm that the chassis mounting hole pattern aligns with your enclosure requirements before finalizing procurement.
Selection Notes
Select this component when a low-profile, single-phase filter is required for applications with current demands up to 3 A. The quick connect termination style is suitable for high-volume assembly processes where soldering is not preferred. Consider the leakage current specification carefully if the application involves sensitive patient-connected medical equipment or strict safety isolation requirements.
Part Context
This part belongs to the RP105 series of power line filters manufactured by Astrodyne TDI. The series offers various current ratings and capacitance options within a standardized compact form factor. The RP105 series is designed to meet international safety and EMC standards for industrial and commercial electronic equipment.
Replacement Considerations
Direct substitutes may include other RP105 series variants with similar current ratings but different capacitance values, such as RP105-3-1-QD. Verify compatibility based on physical dimensions and terminal type.
