RP110-3-0-QD

$22.02

Description：LINE FILTER 250VAC 3A CHASS MNT
Series：RP110
Mfr：Astrodyne TDI
Package：Box

SKU:ad5b64fb7575 Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 3A CHASS MNT
Series：RP110
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：3:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CE, cURus, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-

Download product information

RP110-3-0-QD

Overview

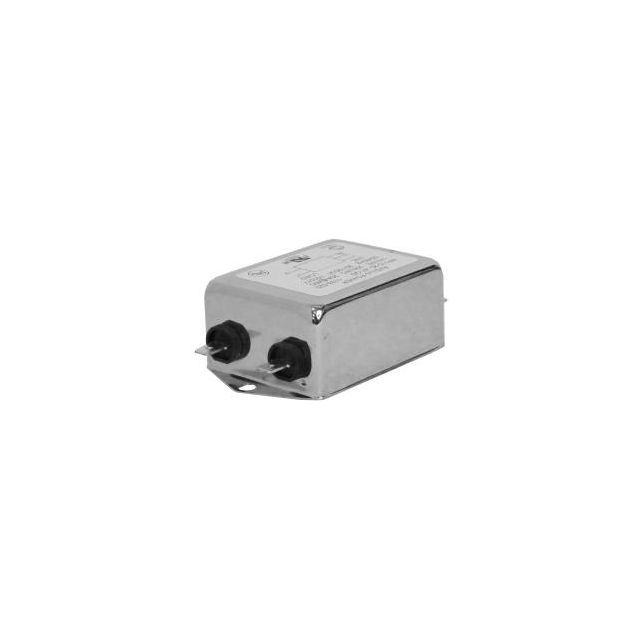

The RP110-3-0-QD is a compact single-phase, single-stage power line filter from the Astrodyne TDI RP110 series. It features a rated current of 3 A and a voltage rating of 250 VAC for operation at 50 Hz or 60 Hz frequencies. The component utilizes quick disconnect (QD) tab connectors for termination and supports chassis mounting. Its physical dimensions are optimized for space-constrained applications, with a height of 45 mm, length of 93 mm, and width of 56 mm. The unit operates within a temperature range of -25°C to +40°C and complies with EN60939 standards.

Feature Summary

Compact single-stage design for efficient EMI/EMI suppression in limited spaces
Quick disconnect tab connector interface for simplified assembly
Chassis mount configuration for stable installation

Applications

Power supplies
Battery chargers
Portable devices

Procurement Notes

Verify availability status as supply may be restricted or subject to factory special orders. Confirm RoHS compliance details and specific certification requirements such as cURus prior to integration. Ensure the selected termination style matches the PCB or wiring harness design specifications for proper electrical connection.

Selection Notes

Select this model for applications requiring low current handling up to 3 A with minimal footprint constraints. The single-stage topology offers cost-effective noise reduction compared to dual-stage alternatives. Verify that the operating temperature range meets the environmental conditions of the target enclosure and that the quick connect tabs align with mating connector types.

Part Context

This component belongs to the RP110 series of compact single-stage power line filters manufactured by Astrodyne TDI. The series provides various current ratings and termination options including QD tabs, wire leads, and studs. It is designed for general EMI filtering in single-phase AC power lines, offering a balance between performance and size for consumer and industrial electronics.
