RP110-3-1-W

Overview

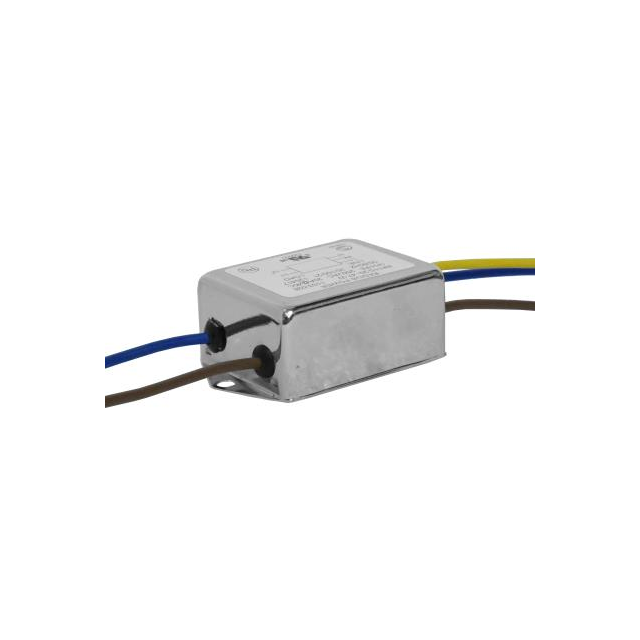

The RP110-3-1-W is a compact single-phase, single-stage power line filter manufactured by Astrodyne TDI. It features a rated current of 3 A and a voltage rating of 250 VAC. The unit utilizes wire leads for termination and is designed for chassis mounting. Key electrical parameters include a capacitance of 1 nF and an operating frequency range of 50 Hz to 60 Hz. Physical dimensions are approximately 45 mm in height, 93 mm in length, and 56 mm in width. It operates within a temperature range of -25°C to +40°C and complies with EN60939 standards.

Feature Summary

• Compact single-stage EMI filtering design
• Wire lead termination configuration
• Chassis mount installation style

Applications

• Medical equipment power conditioning
• Industrial machinery protection
• Commercial electronic systems

Procurement Notes

Verify the specific suffix 'W' confirms wire leads rather than tabs or studs. Confirm RoHS compliance status via the official datasheet. Check for restricted availability as some RP110 variants show limited stock. Ensure the 3A rating matches the load requirements. Validate that the 250 VAC rating suits the input supply.

Selection Notes

Select this model when space constraints require a compact form factor. Choose the wire lead option if direct wiring is preferred over terminal connections. Ensure the application requires single-stage filtration rather than dual-stage performance. Verify that the 3A current capacity is sufficient for the connected load. Confirm compatibility with standard chassis mounting hardware.

Part Context

This component belongs to the RP110 series of compact single-stage power line filters from Astrodyne TDI. The series offers various current ratings including 3A, 6A, 10A, 20A, and 30A. Different termination options such as QD tabs, wire leads, and studs are available across the series. These filters are part of Astrodyne's broader EMI filter solutions for demanding applications.

Replacement Considerations

Check for other RP110 variants with different current ratings if higher capacity is needed. Consider RP220 series models for dual-stage filtration requirements. Verify physical footprint compatibility before substituting with similar single-stage filters from other manufacturers.
