RP115-6-4.7-QD

Overview

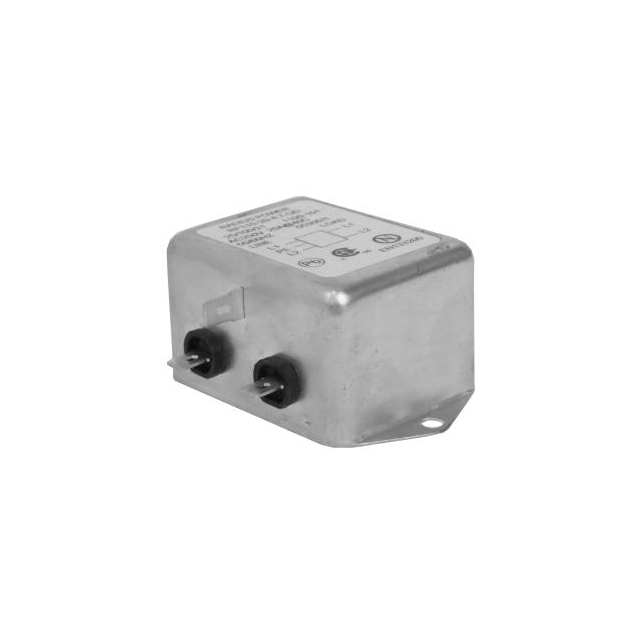

The Astrodyne TDI RP115-6-4.7-QD is a compact, single-phase, single-stage power line filter designed for electromagnetic interference suppression. It features a 250 VAC voltage rating and supports a continuous current of 6 A at operating frequencies of 50 Hz or 60 Hz. The unit incorporates a capacitance value of 4.7 nF and utilizes quick connect terminals for circuit integration. Designed for chassis mounting, this component ensures reliable performance within standard industrial environments while maintaining compliance with major safety standards.

Feature Summary

• Compact physical design optimized for space-constrained installations
• Single-stage filtering architecture for effective EMI/EMI suppression
• Quick connect terminal configuration for simplified wiring

Applications

• Industrial control systems requiring single-phase power conditioning
• Medical equipment power input stages
• Commercial office automation hardware

Procurement Notes

Verify the specific suffix QD to confirm the quick connect termination style matches your assembly requirements. Ensure the 6 A current rating aligns with your system's maximum load. Confirm that the 250 VAC rating is suitable for your local mains voltage infrastructure. Cross-reference the datasheet for precise mechanical dimensions to validate chassis mount compatibility before finalizing procurement orders.

Selection Notes

Select this model when a low-profile, single-stage solution is required for 6 A applications. The RP115 series offers a balance between attenuation performance and physical size. Consider the quick connect interface if rapid assembly or maintenance access is prioritized over screw-terminal robustness. Evaluate leakage current specifications against sensitive medical or audio equipment requirements.

Part Context

This component belongs to the RP115 series, which focuses on compact form factors for single-phase applications. Unlike higher-capacity models in the RP220 or RP357 lines, this unit targets lower current loads. The designation distinguishes it from similar variants by its specific capacitance and termination type, ensuring precise fitment in designated electronic enclosures.

Replacement Considerations

Direct substitutes include the RP115-6-4.7-W, which shares identical electrical ratings but uses wire leads instead of quick connect tabs. Verify that the alternative termination method accommodates your existing harness or PCB layout constraints without requiring adapter modifications.
