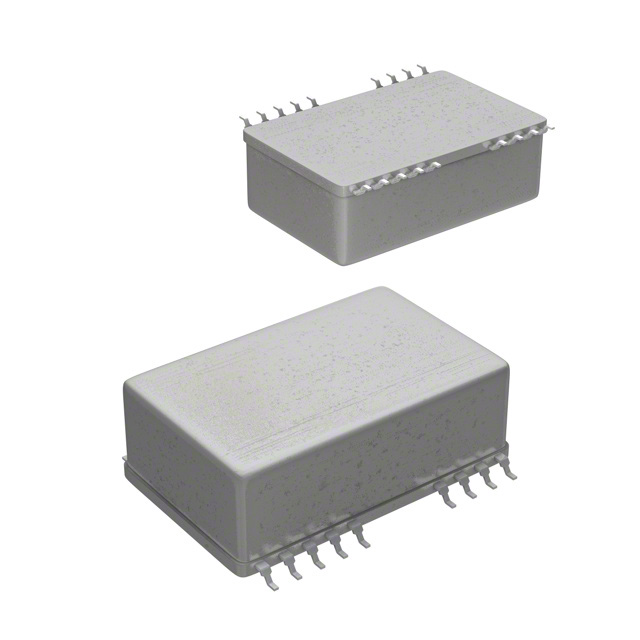

RP12-243.3SAW/SMD

RP12-243.3SAW/SMD is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 3.3V 12W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP12-243.3SAW/SMD

• Description：DC DC CONVERTER 3.3V 12W
• Series：POWERLINE RP12-AW (12W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.5A
• Power (Watts)：12 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 61°C
• Efficiency：84%
• Mounting Type：Surface Mount
• Package / Case：24-SMD Module, 18 Leads
• Size / Dimension：1.26" L x 0.80" W x 0.44" H (32.0mm x 20.3mm x 11.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-

DC DC Converters datasheet and documents for RP12-243.3SAW/SMD
