RP125-80-100-S

Overview

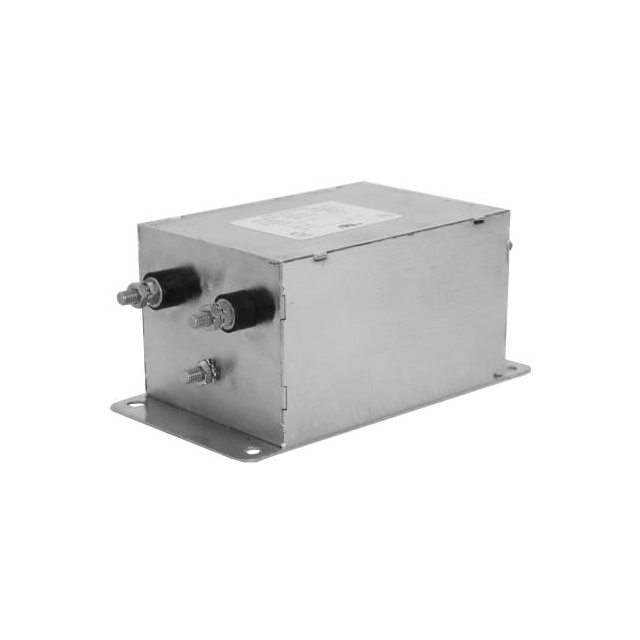

The RP125-80-100-S is a high-performance single-stage power line filter from the Astrodyne TDI RP125 series. It features an 80 A current rating and a 100 nF capacitance value, designed for 250 VAC applications at 50 Hz or 60 Hz operating frequencies. The unit utilizes chassis mount installation with stud termination. Key electrical specifications include a maximum leakage current of 400 uA. The component operates within a temperature range of -25°C to +40°C and holds cURus and EN60939 compliance certifications.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• High current handling capability suitable for demanding industrial loads
• Low leakage current design ensuring safety compliance
• Robust chassis mount construction with stud terminations

Applications

• Industrial automation systems
• High-power motor control cabinets
• Power supply units
• Battery chargers

Procurement Notes

Verify the specific suffix 'S' against official datasheets to confirm stud termination requirements. Ensure chassis mounting provisions align with the stud interface. Confirm that the 80 A rating and 100 nF capacitance meet the system's electromagnetic interference mitigation needs. Check for regional distribution restrictions as availability may be limited in certain areas.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. The 80 A rating dictates the maximum continuous load current. Verify that the 250 VAC voltage rating exceeds the peak line voltage. Consider the physical dimensions and weight for enclosure space planning. Ensure the operating temperature range covers the environmental conditions of the installation site.

Part Context

This component belongs to the RP125 series of power line filters manufactured by Astrodyne TDI. The series is characterized by high-performance filtering capabilities for industrial and commercial power conditioning. The RP125 models are engineered to provide reliable electromagnetic interference reduction in sensitive electronic equipment and power distribution networks.

Replacement Considerations

Consult official substitution guides for equivalent part numbers. Verify that any replacement matches the 80 A current rating, 250 VAC voltage rating, and stud termination style. Ensure compatibility with existing chassis mounting hardware and electrical connections.
