RP130-40-10-C

Overview

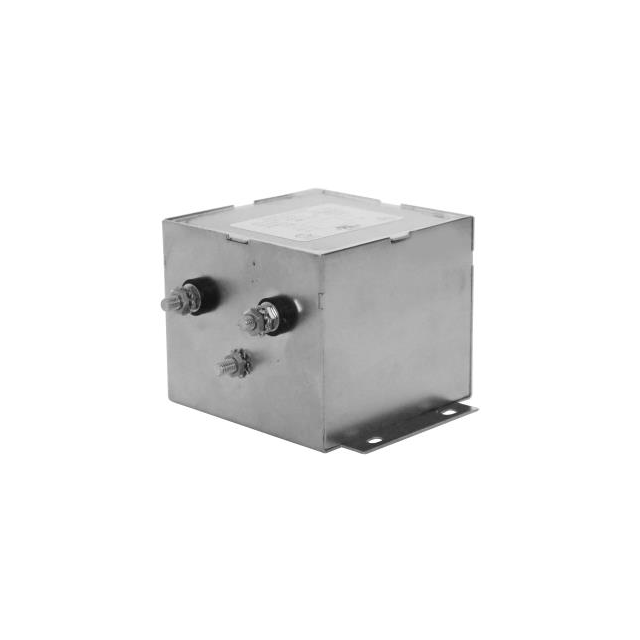

The RP130-40-10-C is a single-stage power line filter from the Astrodyne TDI RP120 series. It is designed for chassis mounting with quick connect termination. The unit operates at 50 Hz or 60 Hz with a voltage rating of 250 VAC and a current capacity of 40 A. Key electrical parameters include a capacitance of 10 nF and a leakage current range of 0 to 18 mA. Physical dimensions are 110 mm in length, 54 mm in height, and 50 mm in width, weighing approximately 725.7 g.

Feature Summary

• Single-stage high-performance filtering architecture
• Chassis mount installation style
• Quick connect terminal type
• Compliant with UL, CSA, and EN standards

Applications

• Industrial equipment power conditioning
• Medical device power supply protection
• Telecommunications infrastructure filtering

Procurement Notes

Verify availability status as distribution may be restricted in certain regions. Confirm that the specific suffix 'C' corresponds to the required chassis mount configuration and termination style. Ensure the 40 A current rating and 250 VAC voltage specifications align with the target application's electrical requirements before finalizing procurement.

Selection Notes

Select this component when a robust single-stage solution is required for 40 A applications. The chassis mount design facilitates secure integration into larger enclosures. Verify that the 10 nF capacitance provides adequate attenuation for the specific noise environment without exceeding leakage current limits for sensitive loads.

Part Context

This model belongs to the RP130 series, which offers various configurations including flange mounts and different current ratings. The RP120 series designation indicates its classification within Astrodyne TDI's product portfolio for power line filters. It shares common design principles with other units in the family but differs in specific mounting and electrical characteristics.

Replacement Considerations

Check for direct substitutes such as the RP130-40-10-S if flange mounting is acceptable instead of chassis mounting. Verify compatibility with alternative models like the RP130-40-10-W if wire termination is preferred over quick connects. Ensure any replacement maintains the 40 A rating and 250 VAC specification.
