RP130-6-100-W

Overview

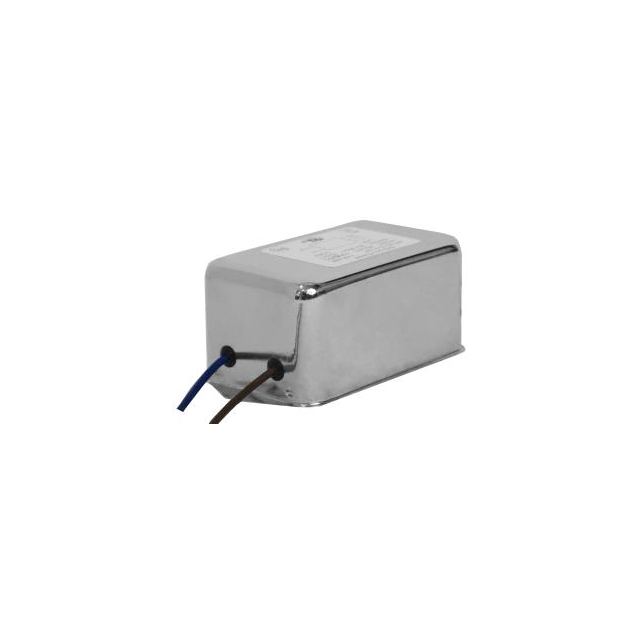

The RP130-6-100-W is a single-phase, high-performance EMC/EMI power line filter from the Astrodyne TDI RP130 series. It features a chassis mount design with wire lead terminations for secure integration. Rated for 250 VAC and 6 A continuous current, it operates at standard 50 Hz or 60 Hz frequencies. The unit incorporates a 100 nF capacitance value to provide effective noise suppression in single-stage configurations. Compliance certifications include UL, CSA, and EN standards.

Feature Summary

• Single-stage EMI/EMC filtering architecture designed for high performance
• Chassis mounting style with wire leads for robust installation
• Certified for international safety and regulatory compliance

Applications

• Medical equipment power input stages
• Industrial control systems requiring EMI suppression
• Test and measurement instrumentation power supplies

Procurement Notes

Verify that the specific order matches the RP130-6-100-W designation to ensure correct capacitance and termination type. Confirm chassis mounting requirements align with the physical dimensions provided in the datasheet. Ensure the application voltage does not exceed the 250 VAC rating. Check for required certification marks on the final assembly documentation.

Selection Notes

Select this component when a single-phase filter with 6 A capacity and wire leads is required. Compare against other RP130 variants if different capacitance values or termination styles are needed. Ensure the chassis mount form factor fits the enclosure constraints. Verify leakage current specifications meet safety requirements for the specific end-use environment.

Part Context

This model belongs to the RP130 series of single-phase power line filters. The series offers various current ratings and capacitance options. The RP130-6-100-W specifically denotes the 6 Ampere rating and 100 nanofarad capacitance configuration within this product family.

Replacement Considerations

Check for direct substitutes within the RP130 series such as RP130-6-3.3-QD for quick connect terminals or RP130-6-100-C for screw terminals. Verify that alternative part numbers maintain the same 6 A current rating and 250 VAC voltage specification.
