RP130-6-2.2-QD

Overview

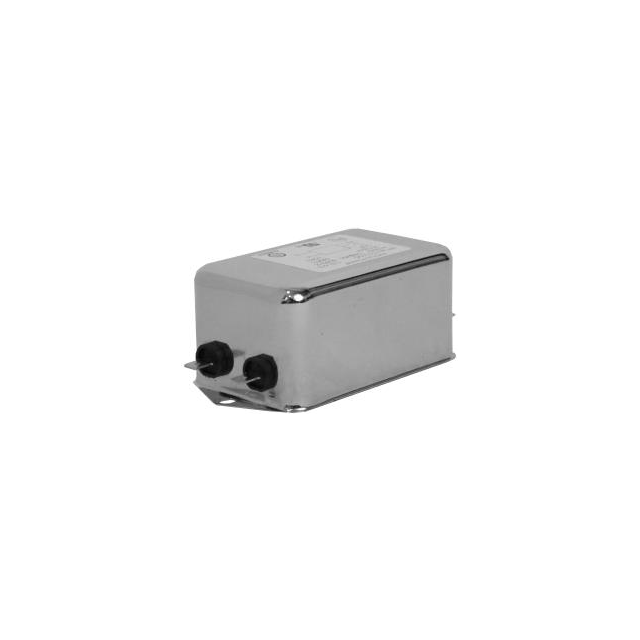

The RP130-6-2.2-QD is a single-stage, one-phase power line filter from the Astrodyne TDI RP130 series. It features a chassis mount design with quick connect termination for secure installation. The unit is rated for 250 VAC and supports a continuous current of 6 A at operating frequencies of 50 Hz and 60 Hz. Key electrical specifications include a capacitance of 2.2 nF and a maximum leakage current of 340 µA. The component complies with UL, CSA, and EN standards.

Feature Summary

• Single-stage filtering architecture designed for high-performance electromagnetic interference suppression
• Chassis mounting configuration ensures stable physical integration within equipment enclosures
• Quick connect termination style facilitates rapid assembly and maintenance connections

Applications

• Medical equipment power input stages
• Industrial control system power supplies
• Telecommunications infrastructure power conditioning

Procurement Notes

Verify the specific part number suffix to confirm the termination type and capacitance value match the design requirements. Ensure the chassis mounting holes align with the enclosure layout. Confirm that the 6 A current rating and 250 VAC voltage rating are sufficient for the target application's peak loads. Check compliance certifications such as UL and EN against regional regulatory mandates before finalizing procurement.

Selection Notes

Select this model when a compact, single-stage solution is required for low-leakage applications. The 2.2 nF capacitance offers a balance between noise attenuation and minimal inrush current. Consider the quick connect terminals if frequent disconnection or simplified wiring is necessary. Verify that the 6 A rating accommodates the load without derating issues in enclosed environments.

Part Context

This component belongs to the RP130 series of power line filters manufactured by Astrodyne TDI. The series provides various configurations tailored for different current ratings and termination styles while maintaining consistent performance characteristics. The RP130 series is widely used in industries requiring reliable EMI/RFI suppression in AC power lines.

Replacement Considerations

Direct replacements must match the 6 A current rating, 250 VAC voltage rating, and 2.2 nF capacitance. Ensure the replacement also utilizes quick connect terminals and chassis mounting. Verify that any substitute part maintains equivalent leakage current limits and holds the same safety certifications.
