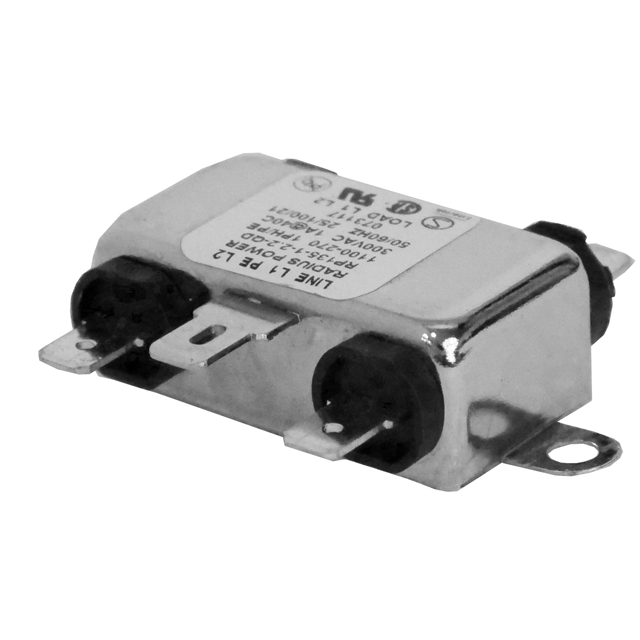

RP135-6-4.7-QD

$14.79

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP135
Mfr：Astrodyne TDI
Package：Box

SKU:5275d6bdbe5e Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP135
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CE, cURus, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-

Download product information

RP135-6-4.7-QD

Overview

The RP135-6-4.7-QD is a single-phase, high-performance EMI/EMC power line filter manufactured by Astrodyne TDI. It features a chassis mount design with quick connect terminals for straightforward integration. The unit is rated for 250 VAC and supports a continuous current of 6 A at operating frequencies of 50 Hz and 60 Hz. Key electrical specifications include a capacitance value of 4.7 nF and a maximum leakage current of 800 uA. The component complies with UL, CSA, and EN standards.

Feature Summary

Single-stage filtering architecture designed for effective electromagnetic interference suppression in single-phase AC circuits.
Chassis mounting configuration facilitates secure installation within equipment enclosures or control panels.
Quick connect terminal type enables rapid wiring connections without the need for soldering tools.

Applications

Industrial machinery requiring compliant power input stages
Medical equipment needing strict EMI mitigation
Test and measurement instrumentation

Procurement Notes

Verify that the specific part number matches the required capacitance and current ratings for your application. Confirm compliance certifications such as UL and EN are valid for your region. Ensure the chassis mount style and quick connect terminals align with your assembly requirements before ordering.

Selection Notes

Select this model when a single-phase filter is needed for 6 A loads at 250 VAC. The 4.7 nF capacitance provides standard attenuation characteristics suitable for general industrial applications. Consider the physical dimensions and mounting style to ensure compatibility with existing panel layouts.

Part Context

This component belongs to the RP135 series from Astrodyne TDI, which specializes in high-performance power line filters. The series offers various current ratings and capacitance values to suit different power levels. The RP135 series is widely used in industries demanding reliable EMI suppression and regulatory compliance.

Replacement Considerations

Check datasheets for alternative models with similar 6 A ratings and 250 VAC voltage limits. Verify that any substitute maintains the same quick connect terminal type and chassis mount footprint to avoid mechanical redesigns.
