Product Detailed Parameters
- Description：LINE FILTER 250VAC 60A CHASS MNT
- Series：RP135
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：60 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, cURus, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
Download product information
Overview

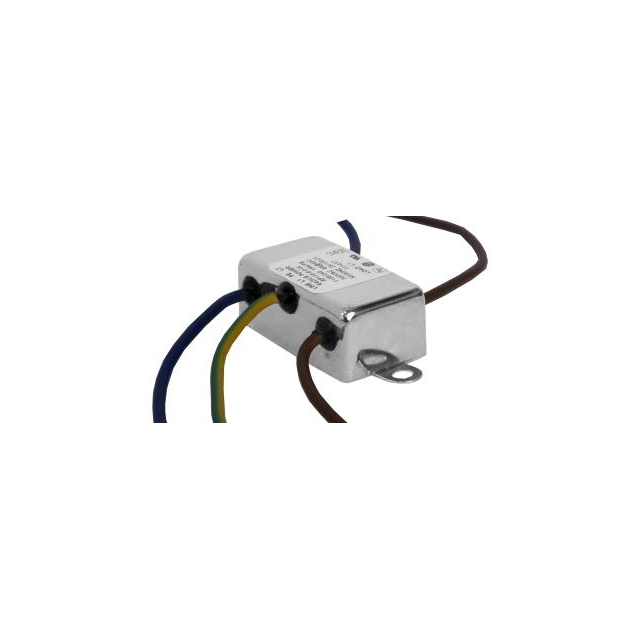

The Astrodyne TDI RP135-60-1-W is a single-phase, single-stage power line filter designed for high-performance electromagnetic interference suppression. It features a rated current of 60 A and a capacitance value of 1 nF. The unit operates at voltage ratings up to 250 VAC within a frequency range of 50 Hz or 60 Hz. Electrical connections are established via wire leads, while mechanical mounting utilizes a chassis mount style. The component complies with UL, CSA, and EN standards.
Feature Summary
- Single-stage filtering architecture for effective noise attenuation
- Chassis mount configuration with wire lead termination
- Compliance with major international safety certifications
Applications
- Industrial machinery power conditioning
- Medical equipment EMI suppression
- Commercial IT infrastructure protection
Procurement Notes
Verify the specific datasheet version for the RP135-60-1-W model to confirm exact dimensional tolerances and terminal specifications. Ensure that the installation environment supports the required chassis mounting method and that the wire lead lengths meet the system integration requirements before finalizing procurement orders.
Selection Notes
Select this component when a single-phase solution is required for circuits carrying up to 60 A. The 1 nF capacitance rating indicates suitability for applications where low leakage current is critical. Confirm that the 250 VAC rating aligns with the local mains supply voltage and that the wire lead termination type is compatible with the downstream connection points.
Part Context
This part belongs to the RP135 series from Astrodyne TDI, which specializes in high-performance power line filters. The series offers various configurations tailored for different current and capacitance needs. The RP135-60-1-W specifically addresses high-current single-phase applications requiring robust EMC/EMI performance in a compact form factor.
Replacement Considerations
Consult official manufacturer substitution guides for verified equivalents. Generic cross-references may not match the specific electrical characteristics or physical dimensions of this single-stage filter.
