RP135-60-10-C

Overview

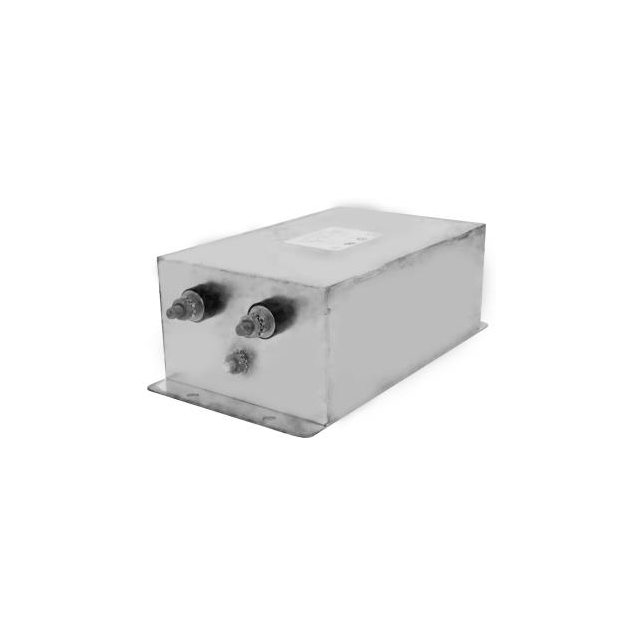

The RP135-60-10-C is a single-phase, single-stage power line filter from the Astrodyne TDI RP135 series. It features a 60 A current rating and a 250 VAC voltage rating for operation at 50/60 Hz frequencies. The unit incorporates a 10 nF capacitance value to provide EMI/RFI suppression. Designed for chassis mounting, it utilizes terminal block connections for secure electrical interfacing within power distribution systems.

Feature Summary

• Single-stage configuration for effective electromagnetic interference suppression
• High-performance design supporting high current loads up to 60 A
• Terminal block interface for robust electrical connectivity

Applications

• General purpose power conditioning
• Industrial equipment power input stages
• Medical device power supplies

Procurement Notes

Verify the specific datasheet version for the RP135-60-10-C to confirm mechanical dimensions and terminal specifications before integration. Ensure that the installation environment meets the thermal requirements for continuous 60 A operation. Confirm compliance with relevant regional safety standards such as UL or EN certifications applicable to your final assembly.

Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels in 50/60 Hz applications. The 60 A rating dictates suitability for high-power circuits where space constraints preclude larger multi-stage units. Verify that the 10 nF capacitance aligns with leakage current limits imposed by the end-use equipment regulations.

Part Context

This module belongs to the RP135 series of power line filters manufactured by Astrodyne TDI. The series is characterized by high-performance filtering capabilities designed for demanding industrial and commercial environments. The RP135 designation indicates a specific form factor and connection style within the manufacturer's broader portfolio of EMC solutions.

Replacement Considerations

Consult official Astrodyne TDI documentation for direct cross-reference part numbers. Substitution requires matching the 60 A current rating, 250 VAC voltage rating, and 10 nF capacitance value to maintain circuit performance and safety compliance.
