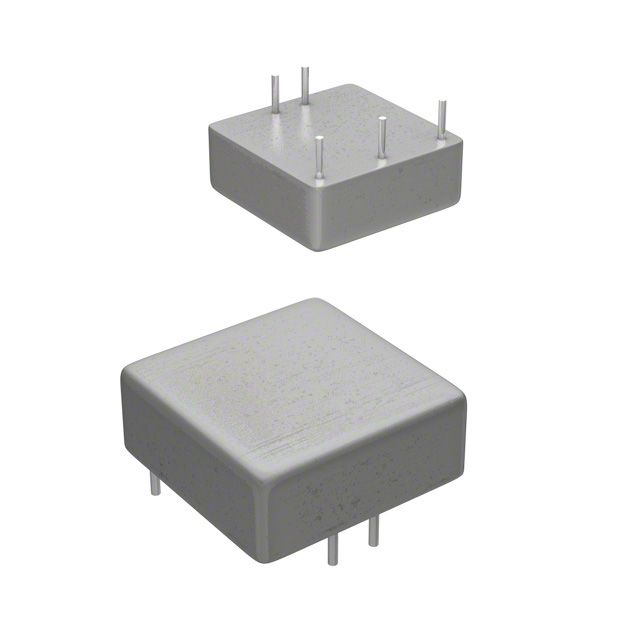

RP15-1205DA/P

RP15-1205DA/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-5V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP15-1205DA/P

• Description：DC DC CONVERTER +/-5V 15W
• Series：POWERLINE RP15-A (15W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.5A, 1.5A
• Power (Watts)：15 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module, 4 Leads
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active High

DC DC Converters datasheet and documents for RP15-1205DA/P
