RP182CS-6-3.3-W

Overview

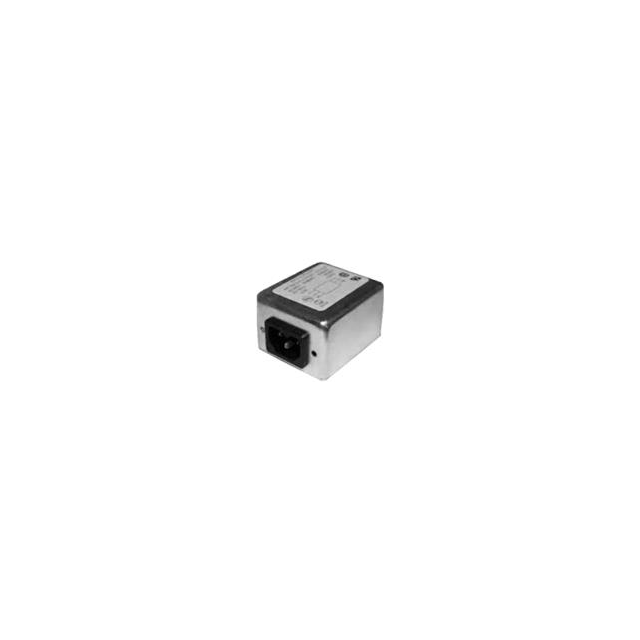

The RP182CS-6-3.3-W is a single-stage, one-phase power line filter from the Astrodyne TDI RP130 series. It features a 250 VAC voltage rating and a 6 A current capacity. The unit utilizes tab connectors for termination and is designed for chassis mounting. Key electrical specifications include a capacitance of 3.3 nF and operation at standard 50 Hz or 60 Hz frequencies. Compliance certifications include cURus and EN60939 standards.

Feature Summary

• Single-stage filtering architecture for efficient noise suppression
• Chassis mount design with tab connector terminations
• Certified to cURus and EN60939 safety standards

Applications

• Industrial equipment power conditioning
• Medical device power supply input stages
• Commercial IT infrastructure protection

Procurement Notes

Verify availability status as distribution channels may indicate limited stock or restricted supply conditions. Confirm that the specific ordering suffix matches the required termination style and certification requirements for your target market. Ensure compatibility with existing chassis mounting hardware and terminal spacing before finalizing procurement orders.

Selection Notes

Select this component when a single-stage solution is sufficient for the intended electromagnetic interference reduction requirements. The 6 A rating suits moderate power applications requiring compact form factors. Verify that the tab connector type aligns with the mating terminals in the system design to ensure reliable electrical connections.

Part Context

This model belongs to the RP130 series, which focuses on single-stage power line filtration. It differs from dual-stage variants like the RP220 series by offering simpler circuitry suitable for less stringent attenuation needs. The series maintains consistent physical dimensions and mounting styles across different current ratings within the same family.

Replacement Considerations

Direct substitutes within the same series include models with adjusted current ratings such as the RP182CS-3-3.3-W or RP182CS-10-3.3-W, provided the electrical load requirements are met. Cross-series replacements require careful verification of insertion loss characteristics and physical footprint compatibility.
