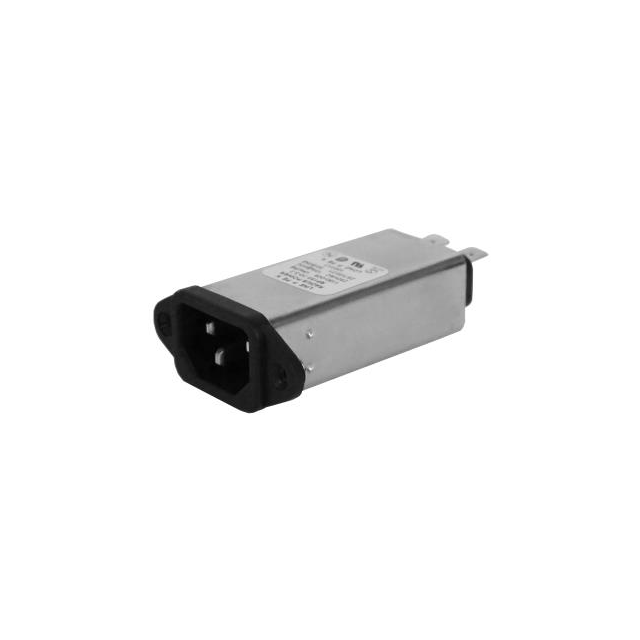

RP185-3-1-QD

$9.70

Description：LINE FILTER 250VAC 3A CHASS MNT
Series：RP185
Mfr：Astrodyne TDI
Package：Box

SKU:031489aa4e4c Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 3A CHASS MNT
Series：RP185
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：3:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CE, CSA, cURus, ENEC
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：-

Download product information

RP185-3-1-QD

Overview

The RP185-3-1-QD is a single-stage power line filter from the Astrodyne TDI RP185 series. It features a rated current of 3 A and a capacitance of 1 nF. The device supports a voltage rating of 250 VAC and operates at frequencies of 50 Hz or 60 Hz. Installation is designed for chassis mounting using quick connect terminals. The unit complies with UL, CSA, and EN standards.

Feature Summary

Single-stage filtering architecture
Chassis mount construction
Quick connect terminal interface

Applications

Industrial equipment power conditioning
Medical device power supplies
Test and measurement instrumentation

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm terminal type and compliance certifications. Ensure the selected variant matches the required installation style and electrical ratings for the target application environment.

Selection Notes

Select this component when a single-stage solution meets EMI suppression requirements. Confirm that the 3 A current rating and 1 nF capacitance align with system leakage current limits and noise attenuation needs.

Part Context

This model belongs to the RP185 series of power line filters. The series offers various current and capacitance configurations to suit different power line filtering applications across industrial and commercial sectors.

Replacement Considerations

Consult official substitution guides for equivalent performance. Verify compatibility of pinouts and mounting dimensions before replacing existing units.
