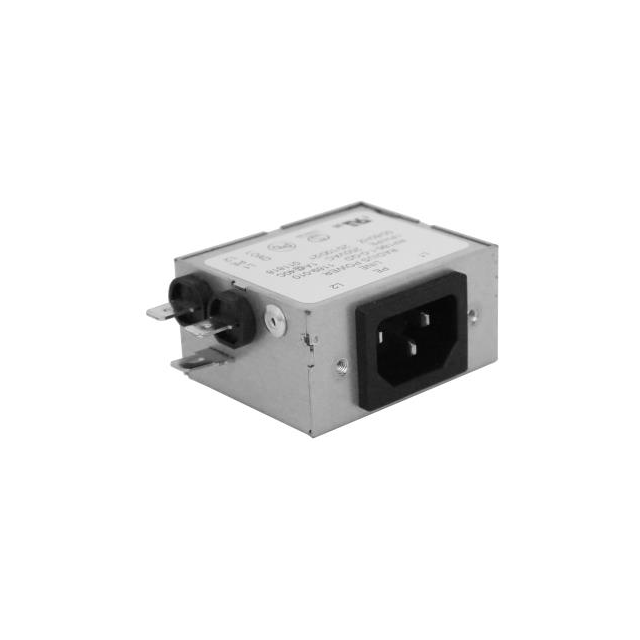

RP186-6-4.7-QD

$18.02

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP186
Mfr：Astrodyne TDI
Package：Box

SKU:9427b1419553 Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：RP186
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CE, CSA, cURus, ENEC
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：IEC 320-C14, Quick Connect
Inductance：-

Download product information

RP186-6-4.7-QD

Overview

The Astrodyne TDI RP186-6-4.7-QD is a single-stage power line filter rated for 250 VAC and 6 A. It features a 4.7 nF capacitance value with a maximum leakage current of 800 uA. Designed for chassis mounting, the unit utilizes quick connect terminals and operates at 50 Hz or 60 Hz frequencies. The component complies with UL, CSA, and EN standards.

Feature Summary

Single-stage EMI filtering architecture
Chassis mount installation style
Quick connect terminal interface

Applications

Chassis-mounted electronic equipment
Industrial control systems
Power supply input stages

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications and dimensional tolerances. Ensure the application voltage does not exceed the 250 VAC rating. Confirm that the quick connect terminal type matches the mating connector specifications in the system design.

Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. The 6 A rating suits moderate current applications. Verify that the chassis mounting method aligns with the enclosure design constraints and available space for the component dimensions.

Part Context

This component belongs to the RP186 series of high-performance power line filters from Astrodyne TDI. The series offers various current ratings and termination options. The RP186 designation indicates a specific form factor within the manufacturer's portfolio of electromagnetic interference suppression devices.

Replacement Considerations

Check the RP186-6-4.7-W variant for wire termination alternatives. Consider the RP135-6-4.7-QD if a different physical footprint is required while maintaining similar electrical characteristics.
