RP220-6-4.7-QD

Overview

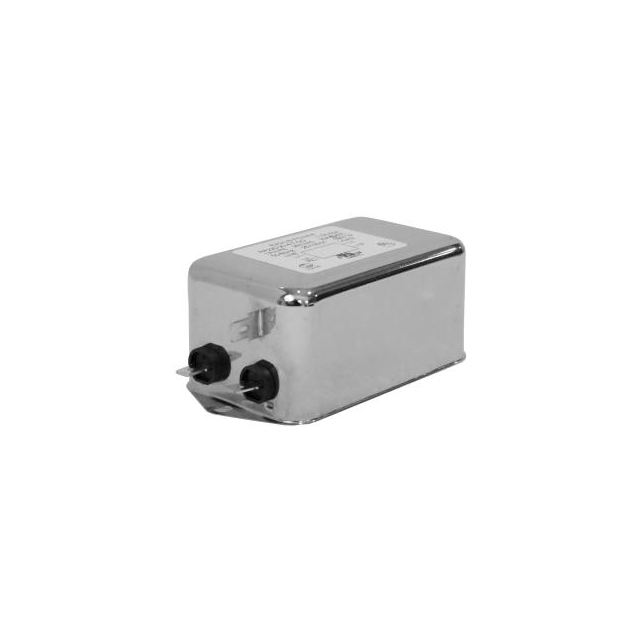

The Astrodyne TDI RP220-6-4.7-QD is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated current of 6 A and a voltage rating of 250 VAC. The unit utilizes quick connect terminals for electrical termination and includes a capacitance value of 4.7 nF. Designed for operation at 50 Hz or 60 Hz frequencies, this component provides high-performance electromagnetic interference suppression in a compact form factor suitable for industrial applications.

Feature Summary

• Dual-stage filtering architecture for enhanced noise attenuation
• Chassis mount design for secure mechanical installation
• Quick connect terminal configuration for simplified wiring

Applications

• General purpose electronic equipment protection
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as UL, CSA, and EN standards. Ensure the operating environment temperature range aligns with the component specifications. Confirm that the quick connect terminal dimensions match the mating connector requirements on the host system board or harness.

Selection Notes

Select this model when a two-stage filtration solution is required for single-phase AC lines up to 6 A. The 4.7 nF capacitance value indicates suitability for general EMI suppression tasks. Consider the chassis mount style if panel integration is preferred over PCB mounting. Verify leakage current limits against safety regulations for the intended application.

Part Context

This component belongs to the RP220 series of power line filters from Astrodyne TDI. The series offers various current ratings and capacitance options to suit different power levels. The RP220 designation typically denotes a surface filter unit optimized for high performance in demanding environments.

Replacement Considerations

Check for direct substitutes within the RP220 series with identical current and capacitance ratings. Verify that any replacement maintains the same two-stage configuration and quick connect interface to ensure mechanical and electrical compatibility.
