Product Detailed Parameters
- Description：LINE FILTER 250VAC 40A CHASS MNT
- Series：RP230
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：40 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, cURus, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

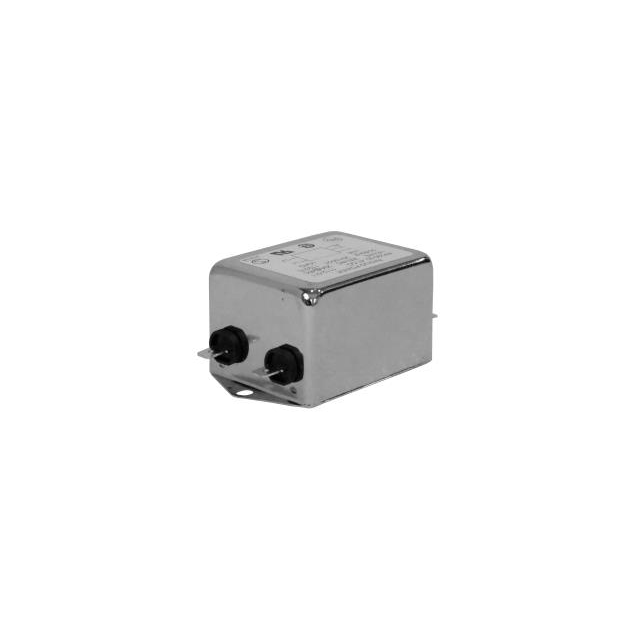

The RP230-40-4.7-W is a high-performance dual-stage power line filter manufactured by Astrodyne TDI. It is designed for single-phase applications with a rated voltage of 250 VAC and a current rating of 40 A. The unit features quick connect termination and chassis mount installation. Key electrical specifications include a capacitance of 4.7 nF, a leakage current of 730 uA, and operation at 50 Hz or 60 Hz. The physical dimensions are 152.1 mm in length.
Feature Summary
- Dual-stage filtering architecture for enhanced noise attenuation
- High current capacity suitable for demanding power systems
- Compact chassis mount design for efficient space utilization
Applications
- Industrial machinery power conditioning
- Medical equipment EMI suppression
- Telecommunications infrastructure filtering
Procurement Notes
Verify the specific datasheet version for the RP230-40-4.7-W to confirm compliance certifications such as UL, CSA, or EN standards required for your region. Ensure that the 40 A current rating and 250 VAC voltage limits align with your system's operational parameters before integration. Confirm terminal compatibility with quick connect connectors.
Selection Notes
Select this component when dual-stage attenuation is required for 40 A single-phase circuits. Compare against the RP130 series if single-stage performance suffices, or the RP220 series for lower current requirements. Verify that the 730 uA leakage current meets safety isolation requirements for the intended application environment.
Part Context
This model belongs to the RP230 series of power line filters from Astrodyne TDI. The series focuses on high-performance dual-stage filtration for industrial and commercial applications. It shares the brand's emphasis on robust chassis mounting and standardized termination types within its product family.
Replacement Considerations
Publicly confirmed substitute part numbers for the RP230-40-4.7-W are not available in the provided documentation. Consult manufacturer engineering support for direct equivalents.
