RP305-80-100-C

Overview

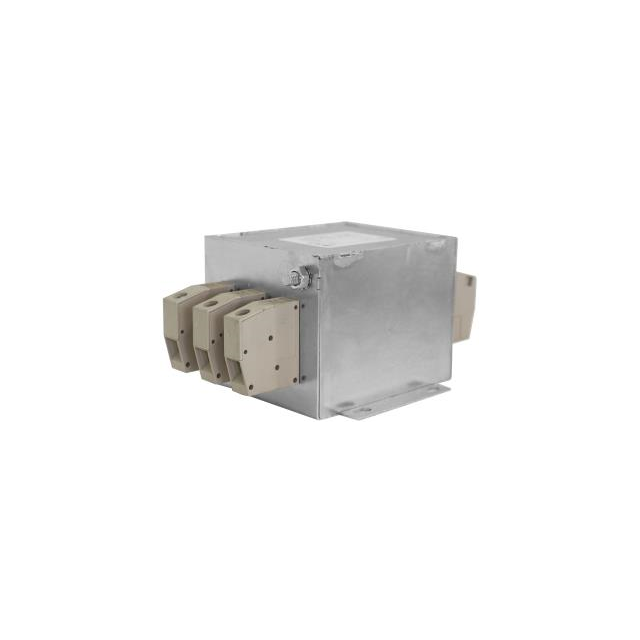

The RP305-80-100-C is a compact three-phase delta single-stage power line filter manufactured by Astrodyne TDI. It supports an operating voltage of 480 VAC and handles a rated current of 80 A at frequencies of 50 Hz or 60 Hz. The unit incorporates a capacitance value of 100 nF with zero leakage current, ensuring minimal ground current flow. Designed for chassis mounting via stud terminals, the component measures 99 mm in length and 44.5 mm in height. It complies with CSA, EN60939, and UR standards.

Feature Summary

• Compact physical design suitable for space-constrained installations
• Single-stage filtering architecture for three-phase delta configurations
• Zero leakage current specification for sensitive grounding requirements

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Commercial building electrical distribution systems

Procurement Notes

Verify specific regional availability as supply status may be restricted. Confirm that the stud terminal interface matches existing chassis mounting hardware. Ensure the 480 VAC rating aligns with the target system voltage. Validate compliance requirements against local regulatory standards before finalizing procurement orders.

Selection Notes

Select this model when a compact footprint is required for three-phase delta applications. The 80 A current rating suits moderate industrial loads. Verify that the single-stage topology meets noise attenuation needs without requiring dual-stage complexity. Ensure chassis mounting capabilities are available in the installation environment.

Part Context

This component belongs to the RP305 series, which focuses on compact power line filters. The series targets applications requiring efficient electromagnetic interference suppression in three-phase systems. The manufacturer emphasizes space-saving designs alongside robust electrical performance for industrial environments.

Replacement Considerations

Consult official documentation for direct substitutes within the RP305 series. Verify that alternative models maintain identical voltage, current, and capacitance ratings. Ensure mechanical dimensions and mounting styles remain compatible with existing infrastructure.
