RP328-75-2000-C

Power Line Filter Modules Overview

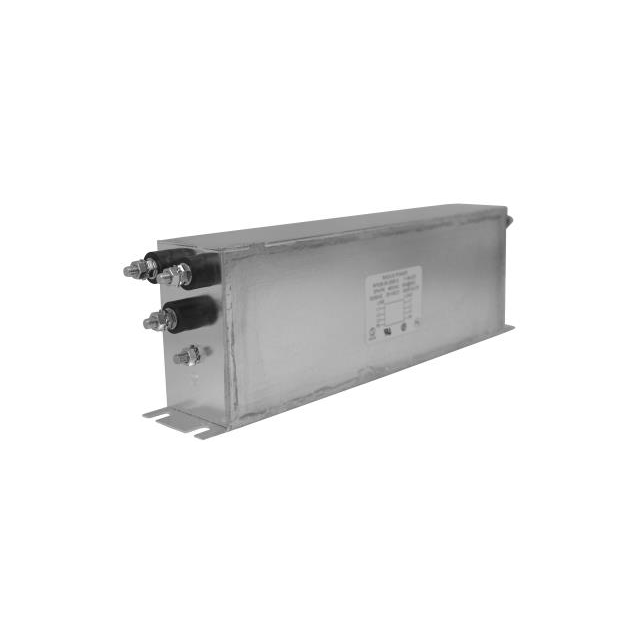

The RP328-75-2000-C is a three-phase delta single-stage power line filter from the Astrodyne TDI RP305 series. It features a chassis mount style with stud termination and is rated for 480 VAC at 75 A. The unit includes 2000 µF capacitance and limits leakage current to 10 mA. Designed for 50 Hz and 60 Hz operation, it complies with CSA, EN60939, and UR standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for three-phase delta configurations
• Chassis mount design utilizing stud termination
• High capacitance value for effective noise suppression

Power Line Filter Modules Applications

• Industrial power conditioning systems
• Motor control cabinets
• Three-phase equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'C' against official datasheets to confirm terminal configuration and compliance certifications. Confirm availability status as distribution channels may indicate limited stock or non-stocked lead times. Ensure mechanical dimensions and stud specifications match the installation requirements before ordering.

Power Line Filter Modules Selection Notes

Select this model for applications requiring 75 A current handling in a three-phase delta setup. Compare the 2000 µF capacitance against system noise profiles. Verify that the chassis mount form factor fits the available enclosure space and that stud connections are compatible with the busbar or wiring scheme.

Power Line Filter Modules Part Context

This component belongs to the RP328 series of bookshelf filters manufactured by Astrodyne TDI. The series provides single-stage filtering solutions for industrial environments. The RP305 series designation indicates specific performance characteristics within the broader product line.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for equivalent models within the RP328 series. Verify that any alternative part matches the 75 A rating, 480 VAC voltage, and 2000 µF capacitance. Ensure physical mounting dimensions and electrical connections remain compatible.
