RP350-20-2000-S

Power Line Filter Modules Overview

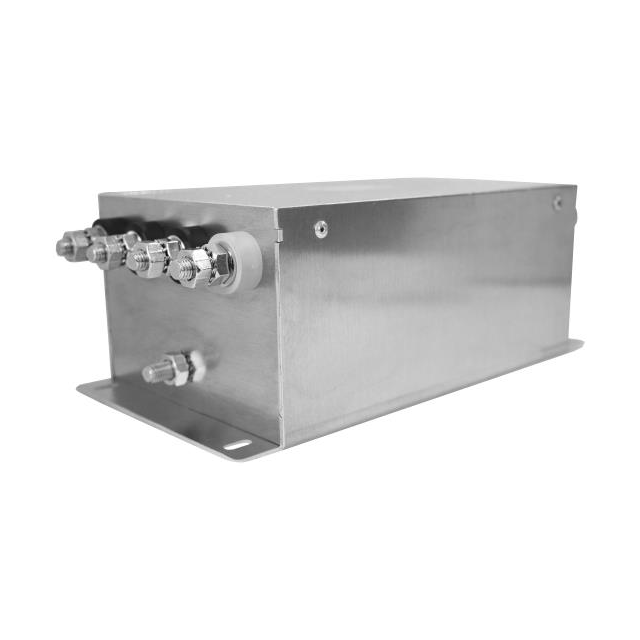

The RP350-20-2000-S is a three-phase delta single-stage power line filter manufactured by Astrodyne TDI. It features a 480 VAC voltage rating and a 20 A current capacity. The unit utilizes stud termination for chassis mounting and operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include a maximum leakage current of 100 uA and a capacitance value of 2000 nF. The device complies with CSA, EN60939, and UR standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture designed for three-phase delta configurations
• Chassis mount construction with stud termination for secure installation
• Compliance with international safety and electromagnetic compatibility standards

Power Line Filter Modules Applications

• Industrial power supply systems requiring EMI suppression
• Battery charging infrastructure for electric vehicles or industrial equipment
• Energy-efficient power conversion systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation against official Astrodyne TDI documentation to ensure correct configuration. Confirm that the 480 VAC rating and 20 A current capacity align with your system requirements. Check for regional distribution restrictions as availability may vary by location. Ensure proper chassis mounting hardware is selected for the stud termination interface.

Power Line Filter Modules Selection Notes

Select this component when a compact single-stage solution is required for three-phase delta applications. The 20 A rating suits moderate power loads where space constraints exist. Verify that the 100 uA leakage current meets safety isolation requirements. Consider the physical dimensions and thermal operating range of -25 C to +50 C during integration planning.

Power Line Filter Modules Part Context

This model belongs to the RP350 series of power line filters from Astrodyne TDI. The series offers various current ratings and capacitance values within a standardized form factor. The RP350 series is designed for industrial environments requiring reliable electromagnetic interference suppression in three-phase power lines.

Power Line Filter Modules Replacement Considerations

Consult official cross-reference lists for direct substitutes. Ensure replacement units match the 480 VAC rating, 20 A current, and stud termination style. Verify identical compliance certifications are maintained.
