RP357-180-2000-C

Power Line Filter Modules Overview

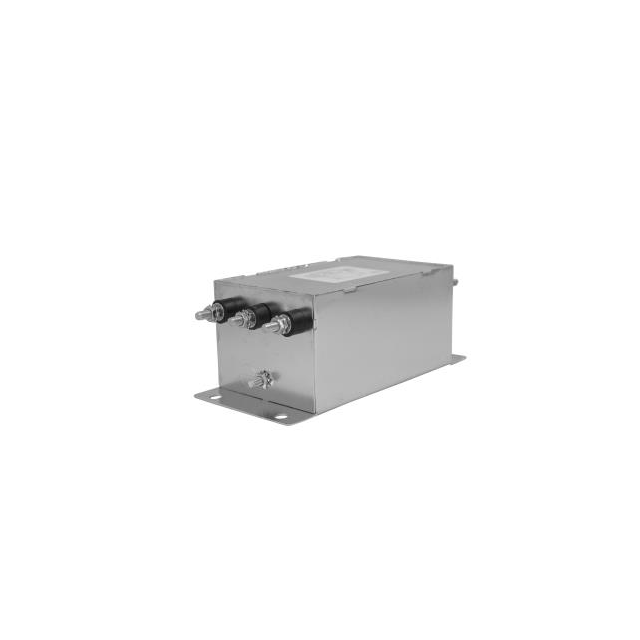

The RP357-180-2000-C is a three-phase delta multi-stage high current EMI power line filter manufactured by Astrodyne TDI. It belongs to the RP325 series and is designed for robust power conditioning applications. The unit features a chassis mount installation style with bolt-in termination types suitable for heavy-duty industrial environments. It operates at standard frequencies of 50 Hz and 60 Hz. The filter incorporates a capacitance value of 2000 nF to provide effective electromagnetic interference suppression. The physical dimensions include a height of 115 mm, and the component weighs approximately 14.5 kg.

Power Line Filter Modules Feature Summary

• Multi-stage filtering architecture for enhanced noise attenuation in three-phase delta configurations
• High current handling capability designed for demanding industrial power systems
• Chassis mount construction with bolt-in terminations for secure mechanical integration

Power Line Filter Modules Applications

• Industrial motor drive systems requiring EMI suppression
• Heavy machinery power distribution units
• Medical imaging equipment power supplies
• Telecommunications infrastructure power conditioning

Power Line Filter Modules Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to ensure correct configuration. Confirm that the bolt-in termination type matches your panel mounting hardware specifications. Check RoHS compliance status directly from the datasheet before procurement. Ensure the operating voltage and frequency ratings align with your system requirements. Validate availability through authorized distributors as supply may be restricted.

Power Line Filter Modules Selection Notes

Select this model when high current capacity and superior noise reduction are required for three-phase delta systems. The multi-stage design offers better performance than single-stage alternatives in noisy environments. Consider the physical weight and chassis mounting requirements during system design. Compare leakage current specifications if sensitive patient or signal integrity is critical. Ensure the 2000 nF capacitance meets your specific filtering needs without causing excessive inrush currents.

Power Line Filter Modules Part Context

This component is part of the RP325 series from Astrodyne TDI, which specializes in high-performance power line filters. The series is engineered for industrial and medical applications where reliable EMI suppression is essential. The RP357 variant specifically targets high-current three-phase delta applications. It complements other models in the lineup by offering specialized multi-stage filtering capabilities.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for compatible alternatives within the RP357 series. Verify electrical parameters such as current rating and capacitance when selecting substitutes. Ensure mechanical compatibility including mounting style and terminal types. Cross-reference datasheets to confirm identical performance characteristics.
