RP359-400-0-B

Power Line Filter Modules Overview

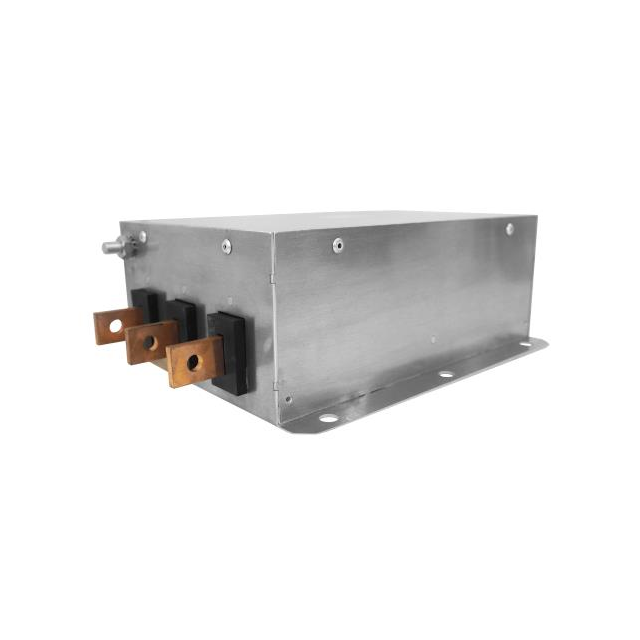

The RP359-400-0-B is a three-phase delta multi-stage EMI power line filter manufactured by Astrodyne TDI. It features a high current rating of 400 A and a voltage rating of 520 VAC. The unit utilizes bolt-in termination for chassis mounting and operates at frequencies of 50 Hz and 60 Hz. Leakage current is specified at 1 mA. The component belongs to the RP359 series and is designed for robust industrial applications requiring significant current handling capabilities.

Power Line Filter Modules Feature Summary

• Multi-stage filtering architecture for enhanced noise attenuation
• High current capacity suitable for demanding industrial loads
• Chassis mount design with bolt-in connections for secure installation

Power Line Filter Modules Applications

• Industrial motor drives
• Power conversion systems
• Heavy machinery power supplies

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Astrodyne TDI documentation to confirm exact electrical characteristics and physical dimensions. Ensure that the procurement channel provides valid manufacturer authorization. Confirm compliance certifications such as UL or CSA are applicable to the specific configuration required for your region. Cross-reference the datasheet for mechanical tolerances before finalizing the order.

Power Line Filter Modules Selection Notes

Select this component when a three-phase delta configuration is required for high-current applications up to 400 A. Ensure the system voltage does not exceed 520 VAC. Verify that the chassis mounting style and bolt-in terminals align with the available panel space and connection infrastructure. Consider the leakage current specification in relation to safety grounding requirements.

Power Line Filter Modules Part Context

This model is part of the RP359 series, which focuses on compact multi-stage filters for high-current environments. It shares design principles with other Astrodyne TDI power line filters but is distinct due to its specific 400 A rating and delta topology. The series is engineered for durability and effective electromagnetic interference suppression in industrial settings.

Power Line Filter Modules Replacement Considerations

Consult official Astrodyne TDI substitution guides for direct equivalents. Verify that any alternative maintains the same 400 A current rating, 520 VAC voltage rating, and three-phase delta configuration. Ensure mechanical compatibility regarding chassis mounting and bolt-in terminal spacing.
