RP370-250-0-B

Power Line Filter Modules Overview

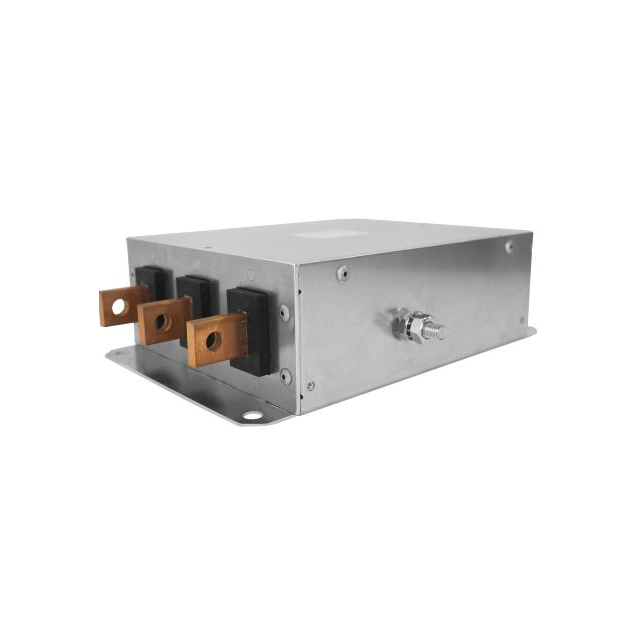

The RP370-250-0-B is a three-phase delta single-stage power line filter manufactured by Astrodyne TDI. It belongs to the RP327 series and is designed for high-current EMI suppression applications. The unit features a chassis mount installation style with stud-type termination for secure electrical connections. It operates at standard industrial frequencies of 50 Hz and 60 Hz. The filter complies with EN60939 standards and holds cURus certification, ensuring adherence to international safety and electromagnetic compatibility regulations for power line filtering.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for effective EMI noise reduction
• Chassis mount design with stud terminations for robust integration
• Compliance with EN60939 and cURus safety certifications

Power Line Filter Modules Applications

• Industrial power distribution systems requiring EMI suppression
• Three-phase equipment interfacing with sensitive electronic loads
• Power conditioning units within manufacturing infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific current rating and capacitance values against the official datasheet before procurement, as these parameters are critical for circuit compatibility. Confirm that the stud termination type matches the available mounting hardware in the target assembly. Ensure the operating environment remains within the specified temperature range to maintain filter performance and longevity.

Power Line Filter Modules Selection Notes

Select this component when a compact single-stage solution is required for three-phase delta configurations. The RP370 series offers a balance between size and filtering capability. Verify that the system's leakage current requirements align with the filter's specifications. Consider the physical dimensions and weight constraints during mechanical design integration to ensure adequate support structures are provided.

Power Line Filter Modules Part Context

This component is part of the RP327 series from Astrodyne TDI, which specializes in power line filters. The series includes various models tailored for different current ratings and phase configurations. The RP370 variant specifically addresses high-current applications, providing reliable noise attenuation for industrial power lines while maintaining compliance with global regulatory standards.

Power Line Filter Modules Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical phase configuration, voltage ratings, and termination styles to preserve system integrity.
