RP380-15-2000-S

Power Line Filter Modules Overview

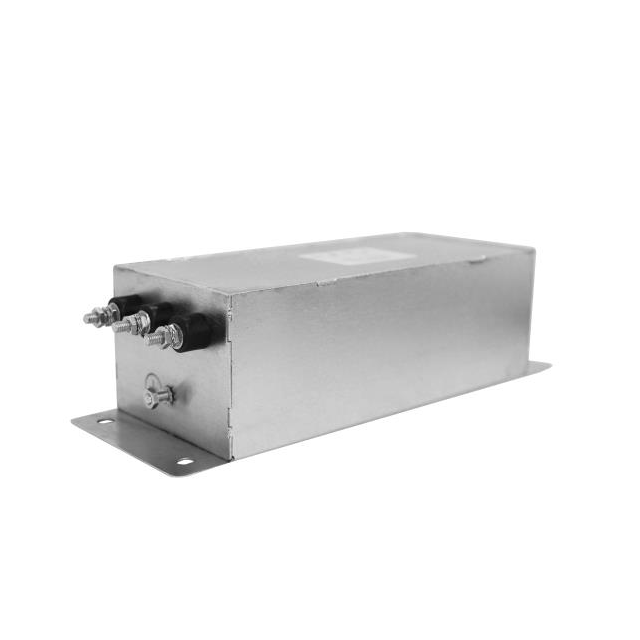

The RP380-15-2000-S is a three-phase delta power line filter from the Astrodyne TDI RP380 series. It features a 600 VAC voltage rating and a 15 A current capacity. The unit incorporates a 2000 nF capacitance value for noise suppression. Designed for chassis mounting, it utilizes stud termination for secure installation. The filter operates at standard frequencies of 50 Hz and 60 Hz. It complies with EN60939 standards and holds cURus certification. The component is engineered for robust industrial power conditioning applications requiring high reliability.

Power Line Filter Modules Feature Summary

• Three-phase delta configuration for balanced power line filtering
• High-capacity 2000 nF capacitance for effective noise attenuation
• Chassis mount design with stud termination for mechanical stability
• Compliance with international safety and electromagnetic compatibility standards

Power Line Filter Modules Applications

• Industrial machinery power supply input stages
• Three-phase motor drive systems
• Heavy-duty manufacturing equipment power conditioning
• Electrical distribution panels requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify that the specific part number matches the required electrical parameters, particularly the 15 A current rating and 600 VAC voltage limit. Confirm that the chassis mounting style and stud termination type are compatible with the intended enclosure design. Ensure that the operating environment falls within the specified frequency range of 50 Hz or 60 Hz. Check for any regional availability restrictions or shipping limitations associated with this manufacturer before finalizing orders.

Power Line Filter Modules Selection Notes

Select this component when a three-phase delta topology is required for high-current applications up to 15 A. The 600 VAC rating makes it suitable for industrial mains voltages. Consider the physical dimensions and stud mounting requirements during mechanical design. Compare against other RP380 variants if different current ratings or capacitance values are needed. Ensure the application does not exceed the thermal limits implied by the current handling capability.

Power Line Filter Modules Part Context

This model belongs to the RP380 series of power line filters manufactured by Astrodyne TDI. The series is designed for demanding industrial environments where reliable electromagnetic interference suppression is critical. The RP380 line typically offers various configurations for single and three-phase systems. This specific variant addresses the needs for higher current handling in delta-connected three-phase circuits.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the same series include models with adjusted current or capacitance ratings, such as RP380-15-1000-S or RP380-15-2000-W. Verify that any replacement maintains the three-phase delta configuration and 600 VAC rating. Cross-reference mounting dimensions and terminal types to ensure mechanical compatibility.
