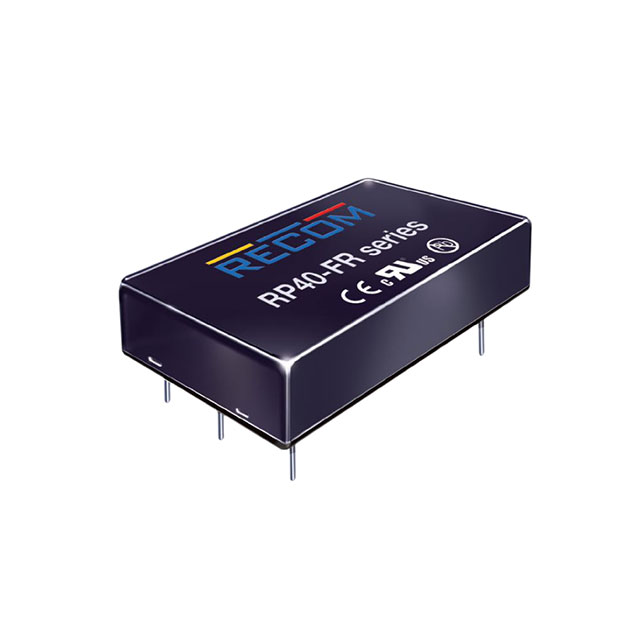

RP40-11024DFR/P-HC

RP40-11024DFR/P-HC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-24V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP40-11024DFR/P-HC

• Description：DC DC CONVERTER +/-24V 40W
• Series：POWERLINE RP40-FR (40W)
• Mfr：Recom Power
• Package：Tray
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-24V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：833mA, 833mA
• Power (Watts)：40 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.24" L x 1.00" W x 0.66" H (56.8mm x 25.4mm x 16.8mm)
• Supplier Device Package：6-DIP Module
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RP40-11024DFR/P-HC
