RP400-150-100-C

Power Line Filter Modules Overview

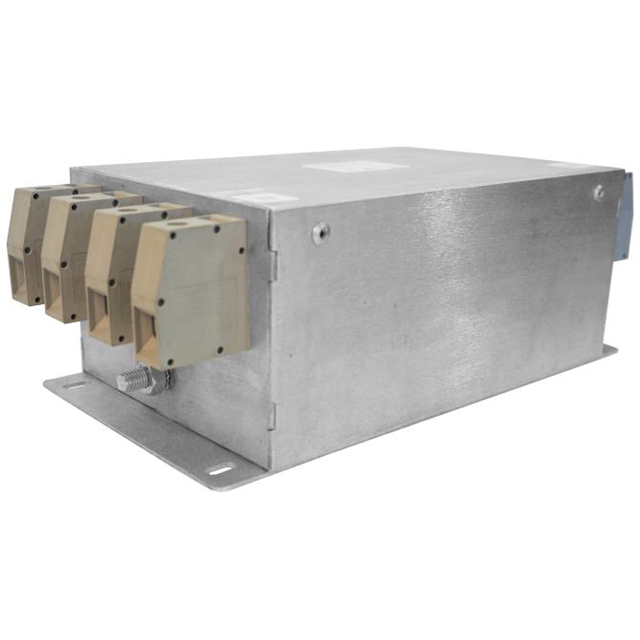

The RP400-150-100-C is a single-stage, three-phase Wye power line filter manufactured by Astrodyne TDI. It features a 150 A current rating and a 480 VAC voltage rating. The unit incorporates 100 nF capacitance and exhibits a leakage current of 1 mA. Designed for chassis mounting with bolt-in termination, it operates at 50 Hz or 60 Hz frequencies.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for three-phase Wye configurations
• Chassis mount installation with bolt-in termination style
• Low leakage current design for safety compliance

Power Line Filter Modules Applications

• Industrial power conditioning systems
• Three-phase motor drive protection
• Heavy machinery electromagnetic interference suppression

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'C' against official datasheets to confirm terminal configuration and mechanical dimensions. Ensure the 150 A rating matches system requirements. Confirm RoHS compliance status through manufacturer documentation before integration.

Power Line Filter Modules Selection Notes

Select this model for applications requiring single-stage attenuation in three-phase Wye circuits. Compare the 150 A rating against peak load demands. Verify chassis mounting compatibility and bolt-in interface requirements against existing panel infrastructure.

Power Line Filter Modules Part Context

This component belongs to the RP400 series of power line filters from Astrodyne TDI. The series provides solutions for electromagnetic interference reduction in industrial environments. The RP400-150-100-C specifically addresses high-current three-phase applications with standardized mounting interfaces.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as RP400-150-100-S or RP400-150-100-W for alternative termination styles within the same series. Verify electrical ratings remain identical when substituting.
