RP400-200-2000-S

Power Line Filter Modules Overview

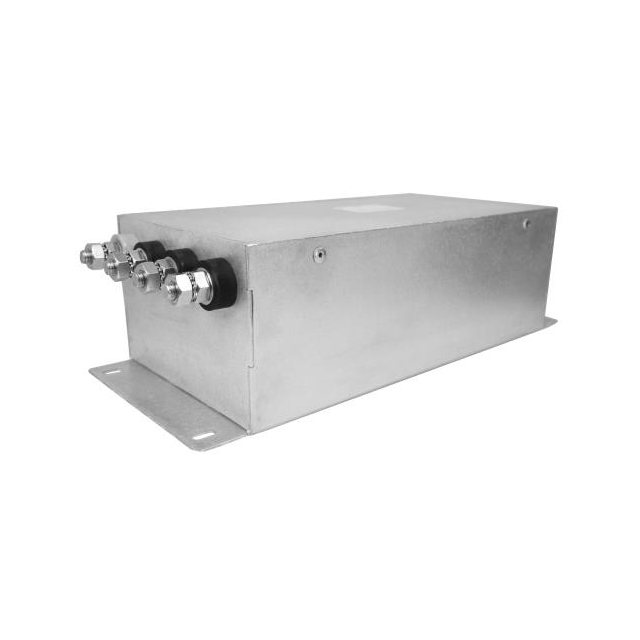

The RP400-200-2000-S is a three-phase wye single-stage power line filter manufactured by Astrodyne TDI. It features a capacitance of 2 uF and supports a voltage rating of 480 VAC with a current capacity of 200 A. Designed for chassis mounting, it utilizes stud-type termination. The unit operates at 50 Hz or 60 Hz frequencies and measures 330 mm in length and 114 mm in height. It holds cURus and EN60939 compliance certifications.

Power Line Filter Modules Feature Summary

• Single-stage EMI filtering architecture for three-phase wye configurations
• Chassis mount design with stud termination for secure installation
• Compliant with international safety standards including cURus and EN60939

Power Line Filter Modules Applications

• Power distribution panels
• Variable frequency drives
• Heating, ventilation, and air-conditioning (HVAC) systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the RP400-200-2000-S to confirm exact leakage current values and attenuation curves, as these parameters are critical for system EMC compliance. Ensure that the stud termination specifications match the available busbar or cable lug dimensions in the target assembly. Confirm that the 200 A continuous current rating aligns with the peak load requirements of the connected equipment to prevent thermal overload during operation.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for the required noise attenuation levels in a three-phase wye system. The 200 A current rating makes it suitable for high-power industrial applications. Verify that the physical dimensions of 330 mm by 114 mm fit within the designated enclosure space. Ensure the operating temperature range covers the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This model belongs to the RP400 series from Astrodyne TDI, which specializes in power line filters for industrial environments. The series is designed to handle significant current loads while providing effective electromagnetic interference suppression. The RP400 series typically offers various capacitance options to tailor filtering performance to specific application needs.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other models within the RP400 series with similar current and voltage ratings but different capacitance values, such as RP400-200-1000-S. Cross-reference mechanical mounting holes and stud sizes to ensure compatibility without modifying the existing chassis structure.
