RP405-40-1000-S

Power Line Filter Modules Overview

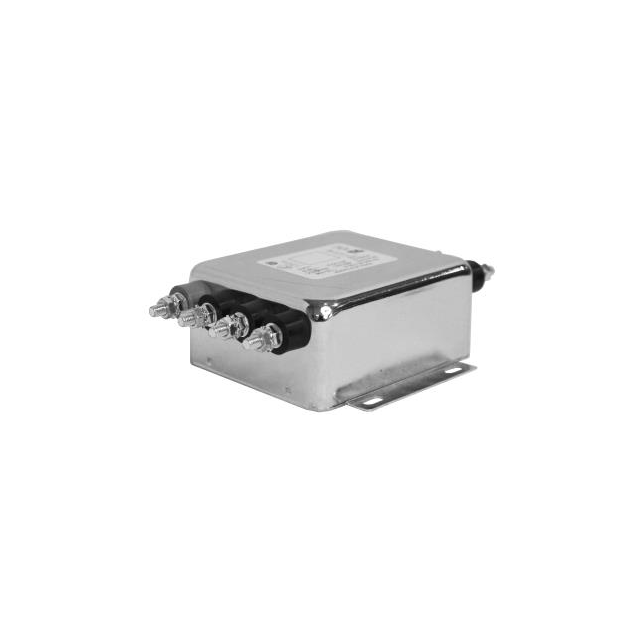

The RP405-40-1000-S is a three-phase wye single-stage power line filter manufactured by Astrodyne TDI. It features a voltage rating of 480 VAC and a current capacity of 40 A. The unit utilizes stud termination for chassis mounting and includes a capacitance of 1 uF with a leakage current of 10 mA. Designed for 50 Hz and 60 Hz operation, it measures 99 mm in length, 84 mm in width, and 44 mm in height. The component complies with CSA, EN60939, and UR standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for three-phase wye configurations
• Chassis mount design with stud termination
• Compliance with international safety standards including CSA and UR

Power Line Filter Modules Applications

• Industrial power distribution systems
• Electromagnetic interference suppression in three-phase equipment
• Power conditioning units requiring 480 VAC input

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'S' against official datasheets to confirm terminal type and packaging configuration. Ensure compatibility with 480 VAC systems and 40 A load requirements. Confirm that chassis mounting provisions align with installation space constraints. Check for regional availability restrictions as indicated by distributor status.

Power Line Filter Modules Selection Notes

Select this model for applications requiring a compact single-stage solution for three-phase wye circuits. The 40 A rating suits moderate industrial loads. Verify that the stud termination method matches existing busbar or cable connections. Consider the physical dimensions (99x84x44 mm) for enclosure integration. Ensure the 1 uF capacitance meets EMI attenuation needs without excessive leakage current concerns.

Power Line Filter Modules Part Context

This component belongs to the RP330 series of power line filters from Astrodyne TDI. The series focuses on single-stage filtering solutions for three-phase applications. The RP405 variant specifically addresses wye-connected systems with standardized mounting profiles.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for equivalent ratings. Verify that any alternative maintains the 40 A current capacity and 480 VAC voltage rating. Ensure the replacement supports stud termination and fits within the specified envelope dimensions.
