RP415-80-100-W

Power Line Filter Modules Overview

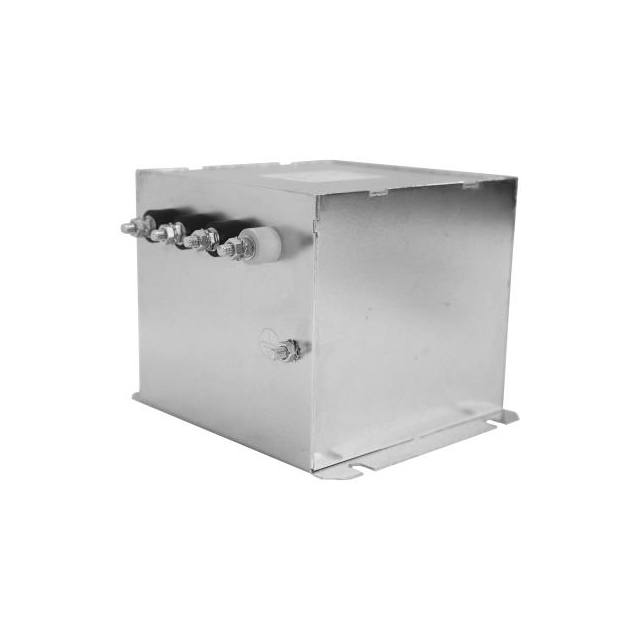

The Astrodyne TDI RP415-80-100-W is a compact, single-stage power line filter designed for three-phase wye configurations. It supports an operating voltage of up to 480 VAC and handles a continuous current rating of 80 A. The unit incorporates a capacitance value of 100 nF to provide electromagnetic interference suppression. Designed for chassis mounting, this component operates within a frequency range of 50 Hz to 60 Hz.

Power Line Filter Modules Feature Summary

• Compact physical design suitable for space-constrained installations
• Single-stage filtering architecture for efficient noise reduction
• Chassis mounting configuration for secure integration

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase equipment EMI suppression
• Power distribution units requiring compact filters

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the RP415-80-100-W to confirm exact dimensional tolerances and terminal specifications. Ensure that the installation environment meets the thermal requirements associated with the 80 A current rating. Cross-reference the mounting hole patterns with the mechanical drawings provided in the official documentation before procurement.

Power Line Filter Modules Selection Notes

Select this model when a three-phase wye system requires a single-stage solution with an 80 A capacity. The 100 nF capacitance provides standard attenuation characteristics. Confirm that the available mounting space accommodates the compact form factor. Verify compatibility with the system's voltage rating of 480 VAC to ensure safe operation under nominal load conditions.

Power Line Filter Modules Part Context

This component belongs to the RP415 series from Astrodyne TDI, which specializes in compact power line filters. The series offers various current ratings and capacitance options tailored for different industrial applications. The RP415 designation indicates a single-stage design optimized for efficiency and size reduction compared to larger dual-stage alternatives.

Power Line Filter Modules Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains the 3-phase wye topology and matches the 80 A current handling capability.
