RP425-200-10-S

Power Line Filter Modules Overview

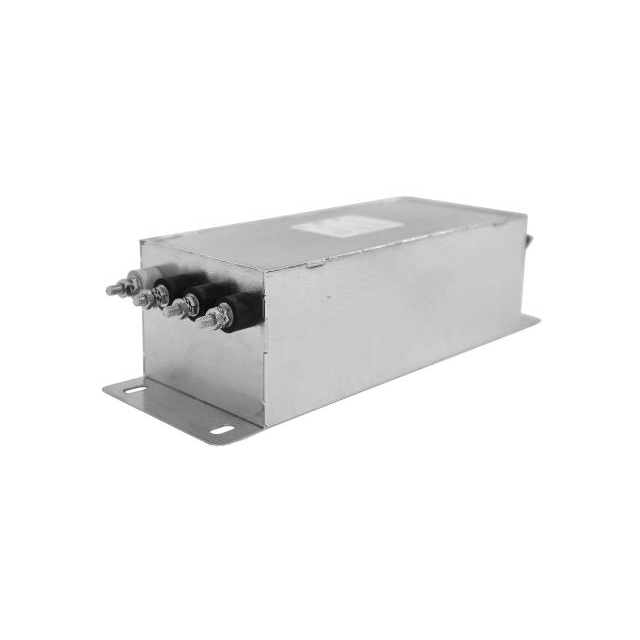

The RP425-200-10-S is a dual-stage power line filter from the RP425 series, designed for three-phase wye configurations. It supports a rated voltage of 480 VAC and handles a continuous current of 200 A at operating frequencies of 50 Hz or 60 Hz. The unit features a capacitance value of 10 nF with a leakage current limited to 0.10 A. Constructed for chassis mounting via stud terminals, it operates within a temperature range of -25°C to +50°C. Compliance certifications include CSA, EN60939, and UR standards.

Power Line Filter Modules Feature Summary

• Dual-stage filtering architecture for enhanced noise attenuation in three-phase systems
• Chassis mount design utilizing stud terminals for secure installation
• Certified compliance with international safety and electromagnetic compatibility standards

Power Line Filter Modules Applications

• Alternative energy equipment including EV charging stations
• Solar power generation systems
• Industrial factory automation machinery

Power Line Filter Modules Procurement Notes

Verify specific lot codes and manufacturing dates upon order confirmation. Ensure that the receiving facility has appropriate handling procedures for heavy industrial components weighing approximately 8.6 kg. Confirm that the installation environment meets the specified thermal limits. Cross-reference the datasheet revision date with your engineering requirements to ensure compatibility with existing system designs.

Power Line Filter Modules Selection Notes

Select this model when high current capacity is required for three-phase wye networks. The dual-stage topology provides superior interference suppression compared to single-stage alternatives. Verify that the available chassis space accommodates the physical dimensions of 407 mm length by 114 mm height. Ensure that the terminal studs match the available mounting hardware torque specifications.

Power Line Filter Modules Part Context

This component belongs to the RP425 series, which specializes in high-current power line filtration. The series offers various current ratings and capacitance options to suit different industrial power conditioning needs. The RP425-200-10-S represents a mid-to-high current variant within this family, balancing performance with physical footprint constraints for large-scale equipment integration.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the same series include the RP425-150-10-S for lower current applications and the RP425-200-1000-W for higher capacitance requirements. Ensure that any replacement maintains the three-phase wye configuration and dual-stage topology to preserve system EMC performance.
