RP500-10-1-W

Power Line Filter Modules Overview

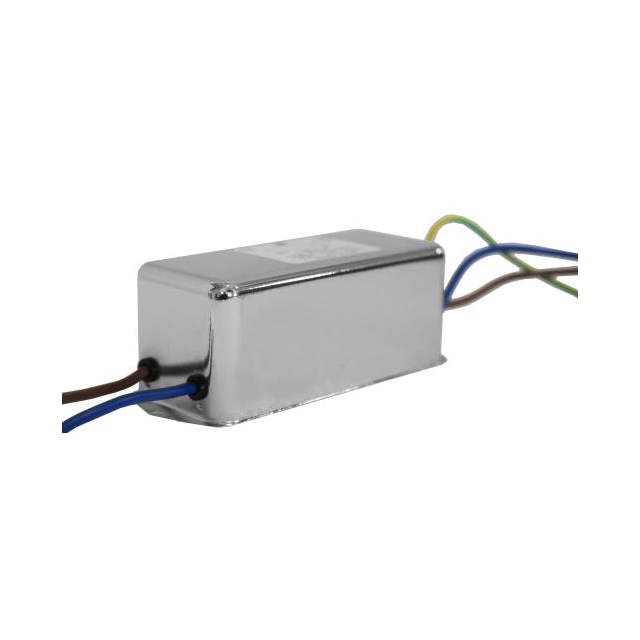

The Astrodyne TDI RP500-10-1-W is a single-stage power line filter designed for three-phase delta configurations. It features a voltage rating of 480 VAC and a current capacity of 10 A. The unit utilizes a chassis mount style with stud termination for secure installation. Key electrical parameters include a capacitance of 10 nF and a leakage current of 100 uA. It operates at frequencies of 50 Hz and 60 Hz. The component complies with EN60939 standards and holds CURUS certification, ensuring adherence to international safety and electromagnetic compatibility requirements for industrial power applications.

Power Line Filter Modules Feature Summary

• Single-stage EMI filtering architecture for three-phase delta systems
• Chassis mount design with stud termination for robust integration
• Compliance with EN60939 standards and CURUS certification

Power Line Filter Modules Applications

• Industrial power distribution units requiring EMI suppression
• Three-phase delta powered machinery and equipment
• Electrical panels adhering to strict EMC regulations

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'W' against official Astrodyne TDI documentation to confirm exact pinout and terminal configuration. Ensure the 480 VAC and 10 A ratings align with your system's operational limits. Confirm that the stud termination type matches your chassis mounting hardware. Cross-reference the CURUS certification status for your target market compliance requirements before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for your EMI reduction needs in a three-phase delta environment. The 10 A current rating suits moderate power applications. Consider the chassis mount form factor if space constraints favor panel-integrated filters over DIN-rail options. Verify that the 100 uA leakage current meets safety isolation requirements for your specific load.

Power Line Filter Modules Part Context

This component belongs to the RP500 series from Astrodyne TDI, which specializes in power line filters for industrial and commercial applications. The series offers various current ratings and stages to address different noise environments. The RP500-10-1-W specifically targets lower current delta systems compared to higher-capacity variants in the same family.

Power Line Filter Modules Replacement Considerations

Consult official Astrodyne TDI cross-reference guides for direct equivalents. Verify that any substitute maintains the 480 VAC rating, 10 A capacity, and three-phase delta topology. Ensure physical dimensions and stud termination specifications match for seamless chassis integration without modification.
