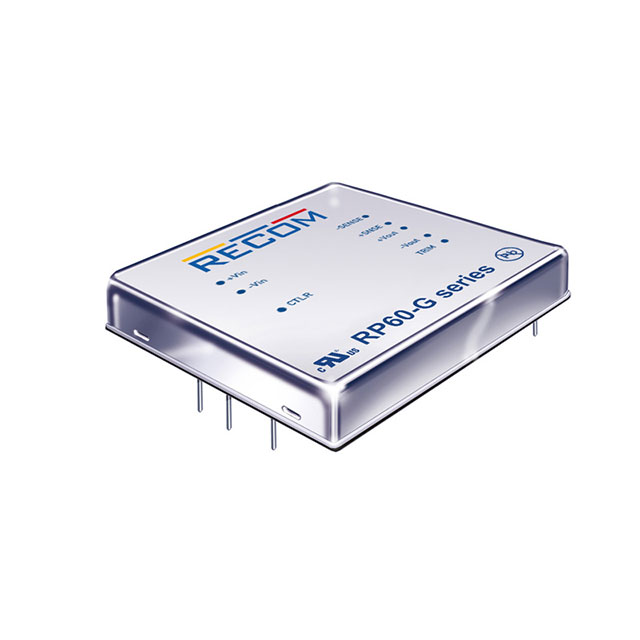

RP60-2415SG/N-HC

RP60-2415SG/N-HC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 15V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP60-2415SG/N-HC

• Description：DC DC CONVERTER 15V 60W
• Series：POWERLINE RP60-G (60W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：60 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 40°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module
• Size / Dimension：2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RP60-2415SG/N-HC
