RP600-125-10-C-B

Power Line Filter Modules Overview

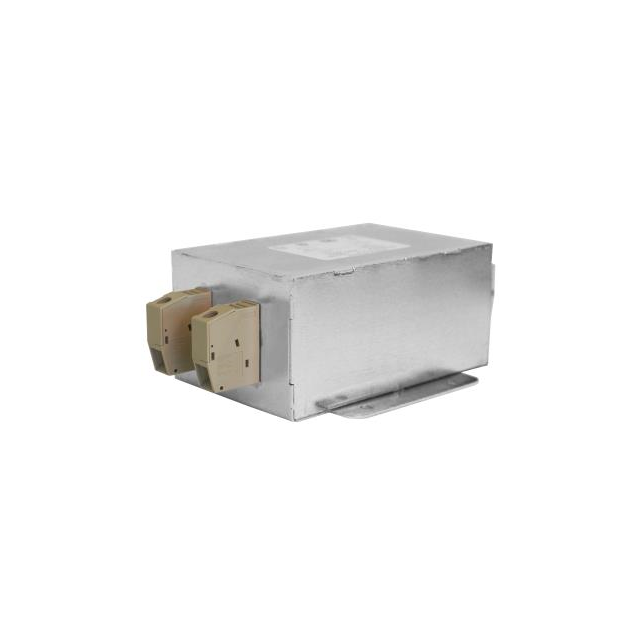

The Astrodyne TDI RP600-125-10-C-B is a high-performance DC power line filter belonging to the RP410 series. It is designed for demanding industrial and military applications requiring robust electromagnetic interference suppression. The unit features a circuit breaker for enhanced safety and protection against overcurrent conditions. Constructed for bulkhead mounting, it utilizes stud terminations to ensure secure electrical connections in heavy-duty environments. This component provides reliable noise filtration for direct current power systems.

Power Line Filter Modules Feature Summary

• Integrated circuit breaker for overcurrent protection
• High-performance DC power line filtering capability
• Bulkhead mounting style with stud terminations

Power Line Filter Modules Applications

• Industrial power distribution systems
• Military electronic equipment
• Aerospace power conditioning units

Power Line Filter Modules Procurement Notes

Verify the specific suffix configuration against official datasheets to confirm terminal type and enclosure options. Confirm compliance certifications such as EN60939 or cURus are required for the target application. Check availability status as lead times may vary. Ensure mechanical dimensions match the installation panel cutout requirements before ordering.

Power Line Filter Modules Selection Notes

Select this model when high-current DC filtering with integrated circuit protection is necessary. The bulkhead mounting design suits panels where space efficiency and secure grounding are priorities. Compare leakage current ratings and insertion loss characteristics against system noise immunity requirements. Ensure the voltage and current ratings exceed the maximum operational loads of the protected circuit.

Power Line Filter Modules Part Context

This component is part of the RP410 series from Astrodyne TDI, which specializes in high-reliability power line filters. The series is engineered for harsh environments, offering various configurations for AC and DC applications. The RP600 variant specifically addresses high-current DC needs, distinguishing itself through integrated protective devices and rugged construction suitable for critical infrastructure.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the same series include models like RP600-125-10-S-B, differing primarily in termination or casing details. Verify that any replacement maintains identical voltage, current, and capacitance ratings. Ensure mechanical compatibility regarding mounting style and stud size. Cross-reference datasheets to confirm equivalent EMI performance specifications.
