RP600C-80-22-C-F

Power Line Filter Modules Overview

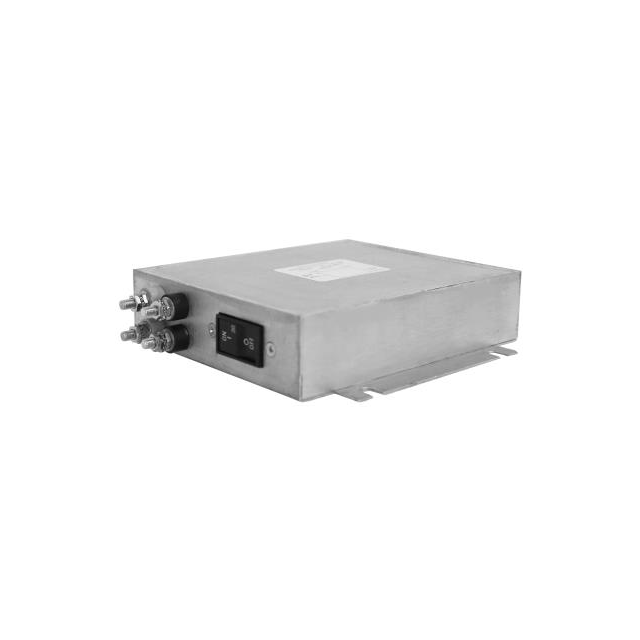

The RP600C-80-22-C-F is a high-performance DC power line filter manufactured by Astrodyne TDI. It belongs to the RP415 series and features an integrated circuit breaker for enhanced protection. Designed for chassis mounting, this single-phase filter utilizes quick connect termination types. The unit is rated for 80 amperes and supports a voltage rating of 250 VAC. It incorporates a capacitance value of 22 nF and complies with UL, CSA, and EN standards.

Power Line Filter Modules Feature Summary

• Integrated circuit breaker for overcurrent protection
• High-performance EMI filtering capabilities
• Chassis mount design for secure installation

Power Line Filter Modules Applications

• DC power distribution systems
• Industrial equipment power supplies
• Medical device power conditioning

Power Line Filter Modules Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure correct terminal type and breaker rating. Confirm compliance requirements such as UL or CSA match the target application regulations. Check availability status as supply may be restricted in certain regions. Ensure chassis mounting dimensions align with the enclosure design before procurement.

Power Line Filter Modules Selection Notes

Select this model when high current handling up to 80A is required alongside integrated circuit protection. The quick connect terminals facilitate rapid assembly compared to solder options. Consider the physical dimensions and chassis mounting style for integration into existing panels. Verify that the 22 nF capacitance meets the specific EMI suppression needs of the DC line.

Power Line Filter Modules Part Context

This component is part of the RP415 series from Astrodyne TDI, specialized for DC power line applications. The series emphasizes high performance and reliability in demanding environments. Similar models in the lineup vary primarily in current ratings and capacitance values while maintaining consistent form factors and mounting styles for modular system design.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the same series include RP600C-80-22-C-B, which shares identical electrical specifications but differs in terminal configuration. Verify that any replacement maintains the same current rating, voltage class, and circuit breaker functionality to ensure system compatibility.
