RP610-3-4.7-W

Power Line Filter Modules Overview

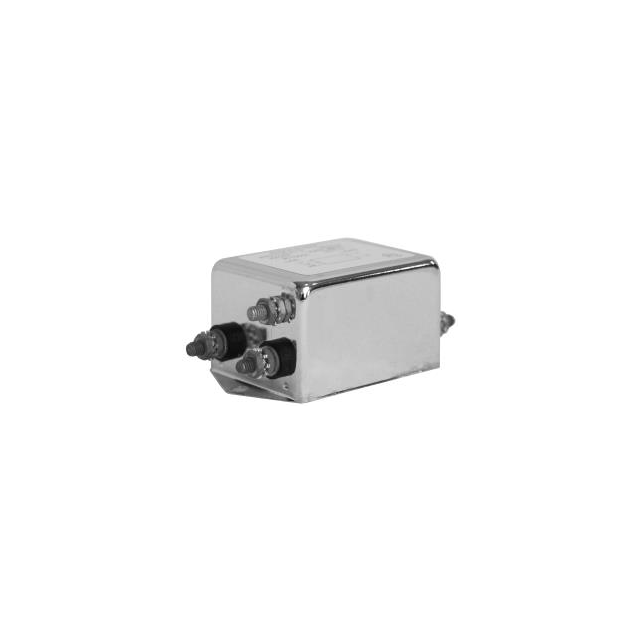

The Astrodyne TDI RP610-3-4.7-W is a single-phase power line filter designed for AC applications. It operates at a rated voltage of 250 VAC and supports a current rating of 3 A. The unit utilizes quick connect terminals for electrical interfacing and features chassis mount installation. Key electrical parameters include a capacitance value of 4.7 nF and a leakage current specification of 800 uA. The component is compliant with UL, CSA, and EN standards and functions within a frequency range of 50 Hz to 60 Hz.

Power Line Filter Modules Feature Summary

• Single-stage EMI filtering architecture
• Chassis mounting configuration
• Quick connect terminal interface

Power Line Filter Modules Applications

• Industrial equipment power conditioning
• Medical device power supplies
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the RP610-3-4.7-W to confirm exact dimensional tolerances and terminal specifications. Ensure that the application environment remains within the specified operating temperature range and voltage limits. Cross-reference compliance certifications such as UL and EN against regional regulatory requirements before integration into final assemblies.

Power Line Filter Modules Selection Notes

Select this model when a compact single-phase filter is required for 3 A circuits. The 4.7 nF capacitance provides standard attenuation characteristics suitable for general EMI suppression. Verify that the chassis mount style aligns with the available panel space and that quick connect terminals are compatible with the system wiring harness design.

Power Line Filter Modules Part Context

This component belongs to the RP610 series of power line filters manufactured by Astrodyne TDI. The series focuses on providing reliable EMI suppression for single-phase AC power lines. The RP610 designation indicates a specific performance tier within the manufacturer's portfolio, distinct from other series like RP100 or RP135 which may offer different current ratings or form factors.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for the RP610-3-4.7-W are not available in the provided documentation. Users should consult official distributor databases or contact the manufacturer directly for verified cross-reference information.
