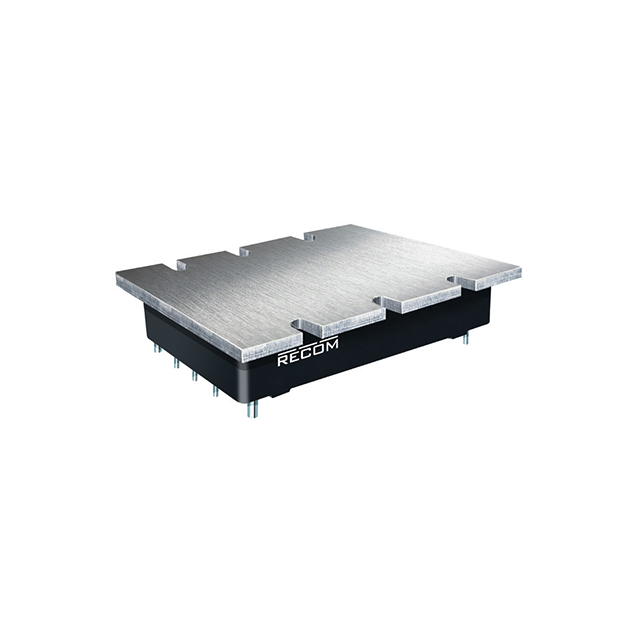

RPA120H-11024SRW/P

RPA120H-11024SRW/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 24V 120W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RPA120H-11024SRW/P

• Description：DC DC CONVERTER 24V 120W
• Series：POWERLINE RPA120-AW (120W)
• Mfr：Recom Power
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：53V
• Voltage - Input (Max)：154V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：120 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：88.50%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RPA120H-11024SRW/P
