RPC0805JT25R0

Overview

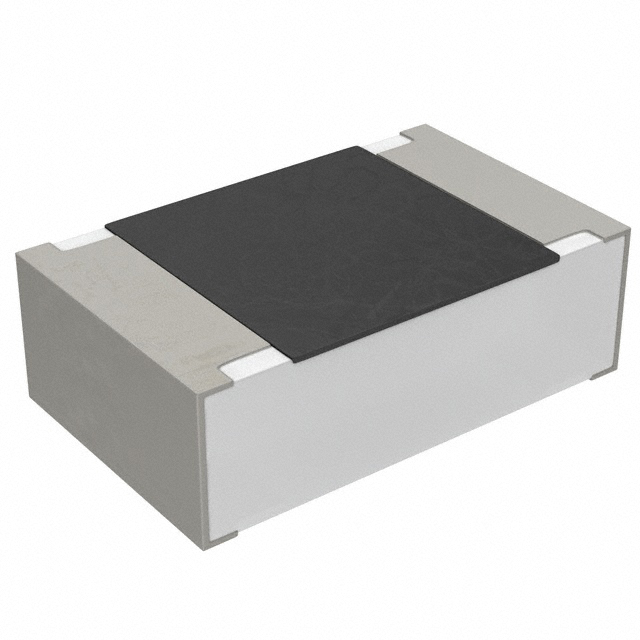

The RPC0805JT25R0 is a thick film chip resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 25 Ohms with a tolerance of ±5%. The component is rated for 0.25W (1/4W) power dissipation and utilizes an 0805 (2012 Metric) surface mount package. It is designed for automotive applications, holding AEC-Q200 qualification. The device operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±200ppm/°C.

Feature Summary

• Engineered as an anti-pulse resistor capable of handling high energy pulses.
• Qualified for automotive grade reliability under the AEC-Q200 standard.
• Constructed using thick film technology for robust performance.

Applications

• Automotive electronic circuits requiring pulse handling capability
• General purpose surface mount PCB assembly
• Current sensing or limiting in low voltage automotive systems

Procurement Notes

Verify the specific part number RPC0805JT25R0 against official Stackpole documentation to confirm availability and exact specifications. Ensure that the required tolerance, power rating, and automotive qualification align with your design constraints before procurement. Cross-reference with authorized distributors to validate authenticity and supply chain integrity.

Selection Notes

Select this component when designing circuits that demand reliable performance under pulsed load conditions within automotive environments. The 0805 footprint offers a balance between power handling and board space efficiency. Consider the ±200ppm/°C temperature coefficient for thermal stability requirements in the specified operating range.

Part Context

This resistor belongs to the RPC series from Stackpole Electronics, which specializes in thick film chip resistors designed for excellent pulse voltage handling. The series supports various tolerances and is widely used in industries requiring durable passive components, particularly in automotive and industrial sectors where reliability under stress is critical.

Replacement Considerations

Direct substitutes must match the 0805 package, 25 Ohm resistance, ±5% tolerance, 0.25W power rating, and AEC-Q200 automotive qualification. Verify that alternative manufacturers offer equivalent anti-pulse characteristics and temperature coefficients to ensure circuit compatibility.
