RPC1197-30

Power Line Filter Modules Overview

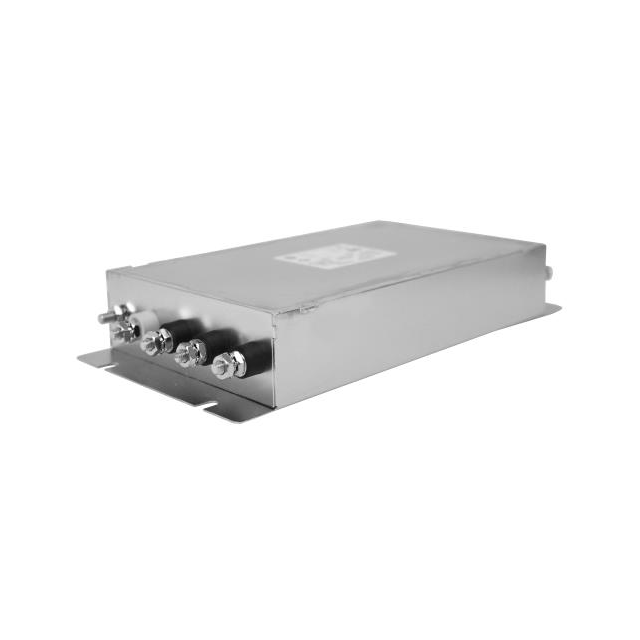

The Astrodyne TDI RPC1197-30 is a dual-stage, three-phase Wye power line filter rated for 30 A and 480 VAC. Designed as an ultra-compact single-unit solution, it operates at 50/60 Hz with a maximum leakage current of 2 mA. The unit measures 215.9 mm in length and 38.1 mm in height, supporting chassis or rack mounting via bolt-in terminals. It functions within a temperature range of -40 °C to +100 °C and holds UR, CSA, and EN compliance certifications.

Power Line Filter Modules Feature Summary

• Dual-stage filtering architecture for enhanced electromagnetic interference suppression
• Ultra-compact physical design optimized for space-constrained installations
• Chassis and rack mount compatibility using bolt-in termination style

Power Line Filter Modules Applications

• Industrial power conditioning systems requiring three-phase filtering
• Equipment sensitive to high-frequency disturbances from 9kHz to 30MHz
• Rack-mounted electronic assemblies needing compact EMI mitigation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the 480 VAC rating and 30 A current capacity align with the target application's electrical requirements. Ensure mounting hardware matches the bolt-in terminal specifications. Check for regional compliance certifications such as UR and CSA if required by local regulations.

Power Line Filter Modules Selection Notes

Select this component when a dual-stage filtering solution is required for three-phase Wye systems operating at 480 VAC. The compact form factor makes it suitable for applications where standard filters exceed available space. Verify that the 30 A current rating meets the load demands and that the bolt-in connection style fits the existing panel infrastructure.

Power Line Filter Modules Part Context

This component belongs to the RPC1197 series of power line filters manufactured by Astrodyne TDI. The series focuses on providing efficient EMI/EMC suppression for industrial and commercial power distribution networks. These filters are engineered to handle significant current loads while maintaining a small footprint, addressing the need for reliable noise reduction in dense equipment layouts.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's cross-reference guide for verified alternatives.
